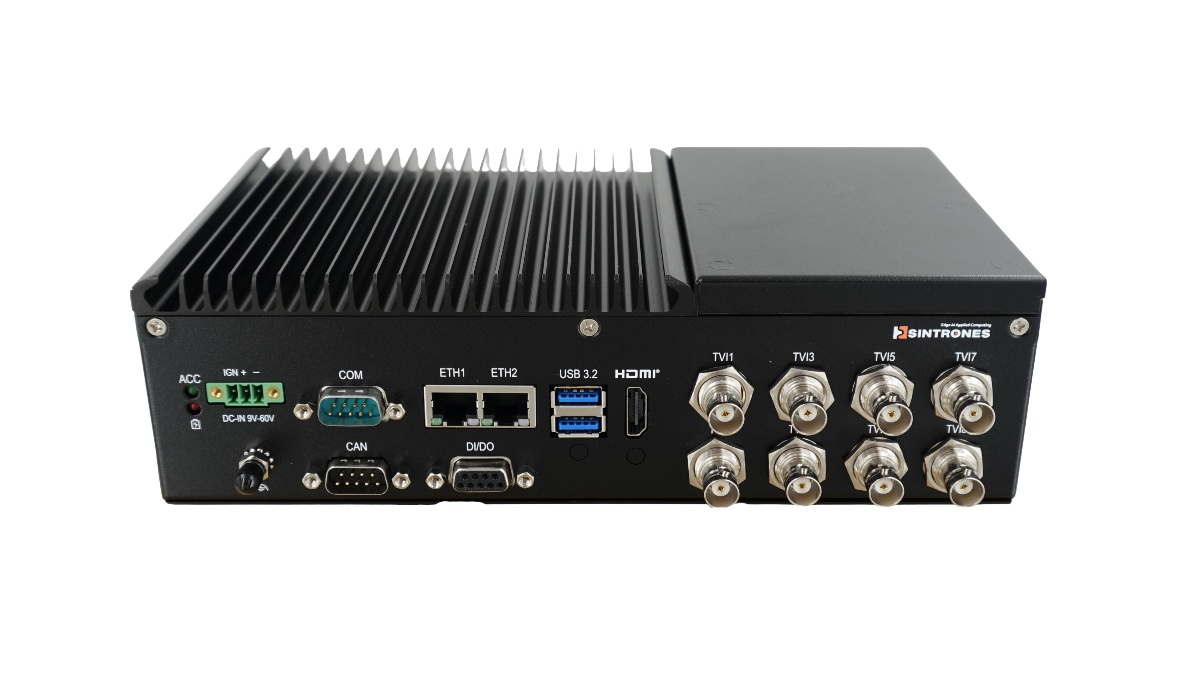

邊緣運算 AI 電腦

IBOX-601-TVI8

• NVIDIA® Jetson Orin™ NX 16GB

(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)

• NVIDIA® Jetson Orin™ Nano 8GB

(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5)

• Platform Security Controller (PSC), Security Engine (SE)

• Auto reset for unresponsive system

• 1 x M.2 2280 Key M for NVMe SSD

• DC 9-60V (nominal power input DC 12V/24V/48V) via Phoenix Contact 3-pin terminal block

• OCP, OVP, surge protection, reversed polarity protection

• Ignition detection, Smart Power Management (BBU Supported)

• Optional battery kit for up to 5 ~ 10 minutes of emergency backup time

* BBU backup time varies depending on actual overall system power consumption

and battery is required to be charged before being used for system power backup

Patent No.: M447854 (Built-in battery)

• 1 x HDMI® Type-A output

• 1 x HD audio output via HDMI®

• 1 x 2.5GbE (Intel® I226-IT) via RJ-45

• 1 x GbE (NVIDIA SoM) via RJ-45

• 8 x TVI/AHD/CVI Input via BNC

• 1 x CAN FD

• 2 x USB 3.2

• 4 x DI, 4 x DO

• 1 x RS-232/422/485

• 1 x 2-pin terminal block for 12VDC/1A output

• 1 x USB type-C for system recovery (device only)

• NVIDIA® JetPack 6.2 or above

(Jetson Linux and NVIDIA® development tools included)

• NX 16GB (40W): -25°C ~ 63°C (-13°F ~ 145°F) with 0.6m/s airflow

• Nano 8GB (25W): -25°°C ~ 70°C (-13°F ~ 158°F) with 0.6m/s airflow

*Operating temperature varies by accessories installed.

• -40°C ~ 80°C (-40°F ~ 176°F)

• 10% RH ~ 90% RH (non-condensing)

• MIL-STD-810H, Method 514.8, Procedure I, Cat.4 (Operating)

• IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

• MIL-STD-810H, Method 516.8, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD (Operating)

• Aluminum Alloy

• 5 x SMA connector mounting hole

• Wall mounting

• 1800 g

• 244 x 135 x 69 mm (9.61 x 5.32 x 2.72 in.)

• IBOX-601-TVI8-zzzzz (zzzzz = ONX16 = Orin NX16GB, zzzzz = ON8 = Orin Nano 8GB)

• NVIDIA® Jetson Orin™ NX SoM w/ 8 x TVI/AHD 1 x CAN FD Edge AI Computer

• Made in Taiwan

• M.2 2280 Key M NVMe SSD -40°C ~ 85°C

• M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

• M.2 3042/3052 Key B WWAN module, -40°C ~ 85°C

• M.2 2242 Key B GNSS module, -40°C ~ 85°C

• AC/DC 100-240V/12V 60W C14 DC plug power adapter

• 720p25 / 720p30 / 1080p25 / 1080p30
