IBOX-603P-IP66-DP

邊緣運算 AI 電腦

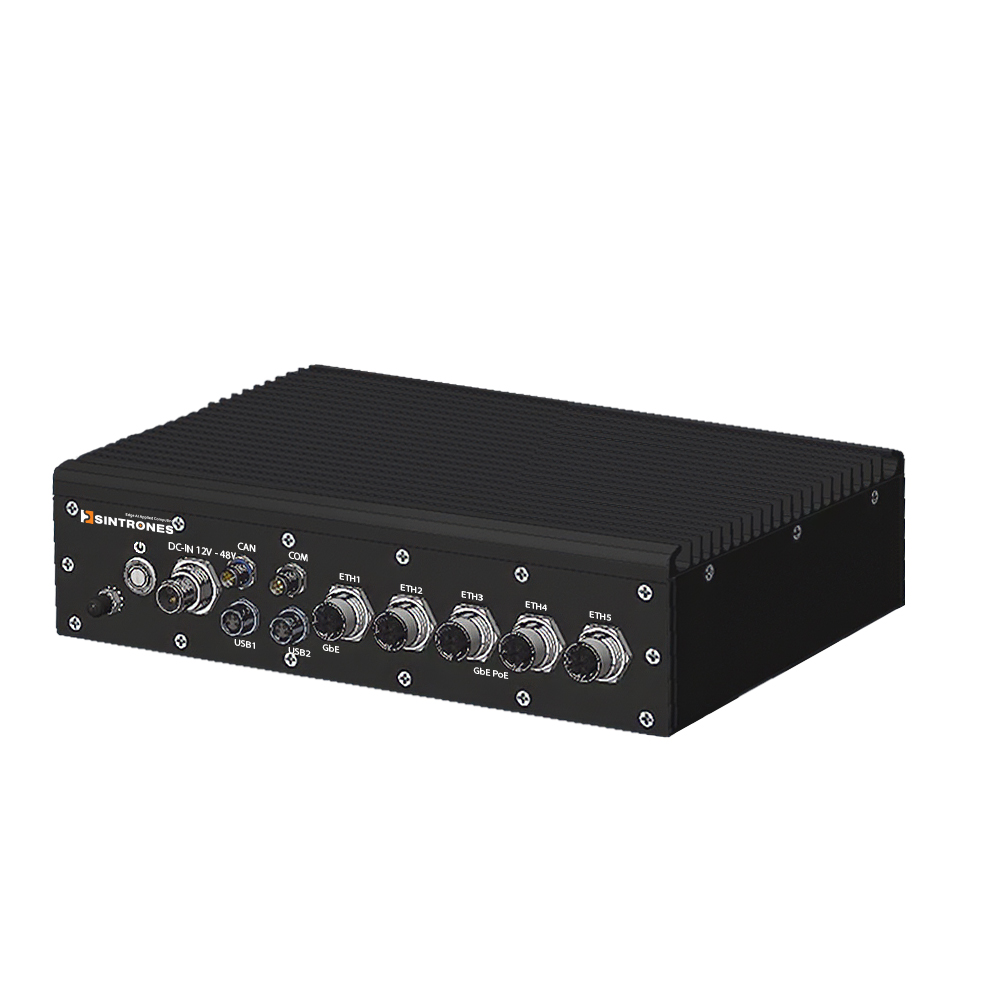

IBOX-603P-IP66-DP

NVIDIA® Jetson Orin™ Rugged IP66 PoE Edge AI Computer

  • NVIDIA® Jetson Orin™ NX/Nano SoM
  • 4 x GbE with PoE for 15W per port
  • 5 x Ethernet Ports
  • IP66 for Harsh Environment Application
  • Wide-range Voltage Input with Smart Power Management Support
  • -25 to 70°C Fanless for Operating Environment

Product Status: Coming Soon
CE FCC Wide-temperature Fanless
線上詢價 Datasheet
SYSTEM
Module

• NVIDIA® Jetson Orin™ NX 16GB (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)

• NVIDIA® Jetson Orin™ NX 8GB (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)

Security

• Platform Security Controller (PSC), Security Engine (SE)

Watchdog

• Auto reset for unresponsive system

INTERFACE
Video

• 1 x DP

*Native DisplayPort that doesn’t support DP++

Audio

• 1 x HD audio output via DP

Ethernet

• 1 x GbE (NVIDIA SoM) via M12 X-code

• 4 x GbE (Marvell Switch) w/ PoE via M12 X-code

**PoE supports 15W per port with a total budget: 60W

CAN

• 1 x CAN FD via M8

USB

• 2 x USB 2.0 via M8

• 1 x USB 3.2

DIO

• Option

COM

• 1 x RS-232/422/485 via M8

Mgmt. Port

• 1x USB Type-C for system recovery only (device only)

INTERNAL EXPANSION

M.2

• 1 x M.2 3042/3052 Key B for WWAN w/ dual Nano SIM support

• 1 x M.2 2230 Key E for Wi-Fi/BT

STORAGE
Storage Type

• 1 x M.2 2242 Key M for NVMe

CERTIFICATION / COMPLIANCE

• CE, FCC Class A, UKCA, IEC 62368-1

POWER
Power Input

• DC 12-48V (nominal power input 12V/24V/48V) via M12 K-code

*DC 10V – 57V for tolerane range

Power Protection

• OCP, OVP, surge protection, reversed polarity protection

Power Management

• Ignition detection, Smart Power Management

RTC Battery

• Removable tray for coin cell battery

SOFTWARE
Operating System

• NVIDIA® JetPack 6.2 or above (Jetson Linux and NVIDIA® development tools included)

ENVIRONMENTAL
Operating Temp.

• -25°C ~ 70°C (-13°F ~ 158°F) with 0.6 m/s airflow

*Operating temperature varies by accessories installed.

Storage Temp.

• -40°C ~ 80°C (-40°F ~ 176°F)

Relative Humidity

• 10% RH ~ 90% RH (non-condensing)

Vibration

• IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

• MIL-STD-810H, Method 514.8, Procedure I, Category 4

Shock

• MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

MECHANICAL
Construction

• Aluminum alloy

Antenna

• 6 x SMA connector mounting hole

Mounting

• Wall mounting

Net Weight

• 2.1 kg (4.63 lb)

Dimensions (L x W x H)

• 240 x 150 x 67.5 mm (9.45 x 5.91 x 2.66 in.)

Ingress Protection

• IP66

ODERING INFORMATION
Model Number

• IBOX-603P-IP66-DP-zzzzz (zzzzz=ONX16=Orin NX 16GB, zzzzz=ON8=Orin Nano 8GB)

Description

• NVIDIA® Jetson™ Orin NX 16GB w/ 4 x PoE / 1 x DP w/ IP66 Rugged Edge AI Computer

State of Origin

• Made in Taiwan

OPTIONAL ACCESSORIES
Storage

• M.2 2242 Key M NVMe SSD, -40°C ~ 85°C

Wi-Fi

• M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

WWAN

• M.2 3042/3052 Key B WWAN module w/ thermal kit, -40°C ~ 85°C

GNSS

• M.2 2242 Key B GNSS module, -40°C ~ 85°C

• M.2 2230 Key A-E GNSS module, -40°C ~ 85°C

CAN Bus

• M.2 3042 Key B CAN Bus module, -40°C ~ 85°C

Power Adapter

• AC/DC 100-240V/24V 160W C14 bare wire power adapter
