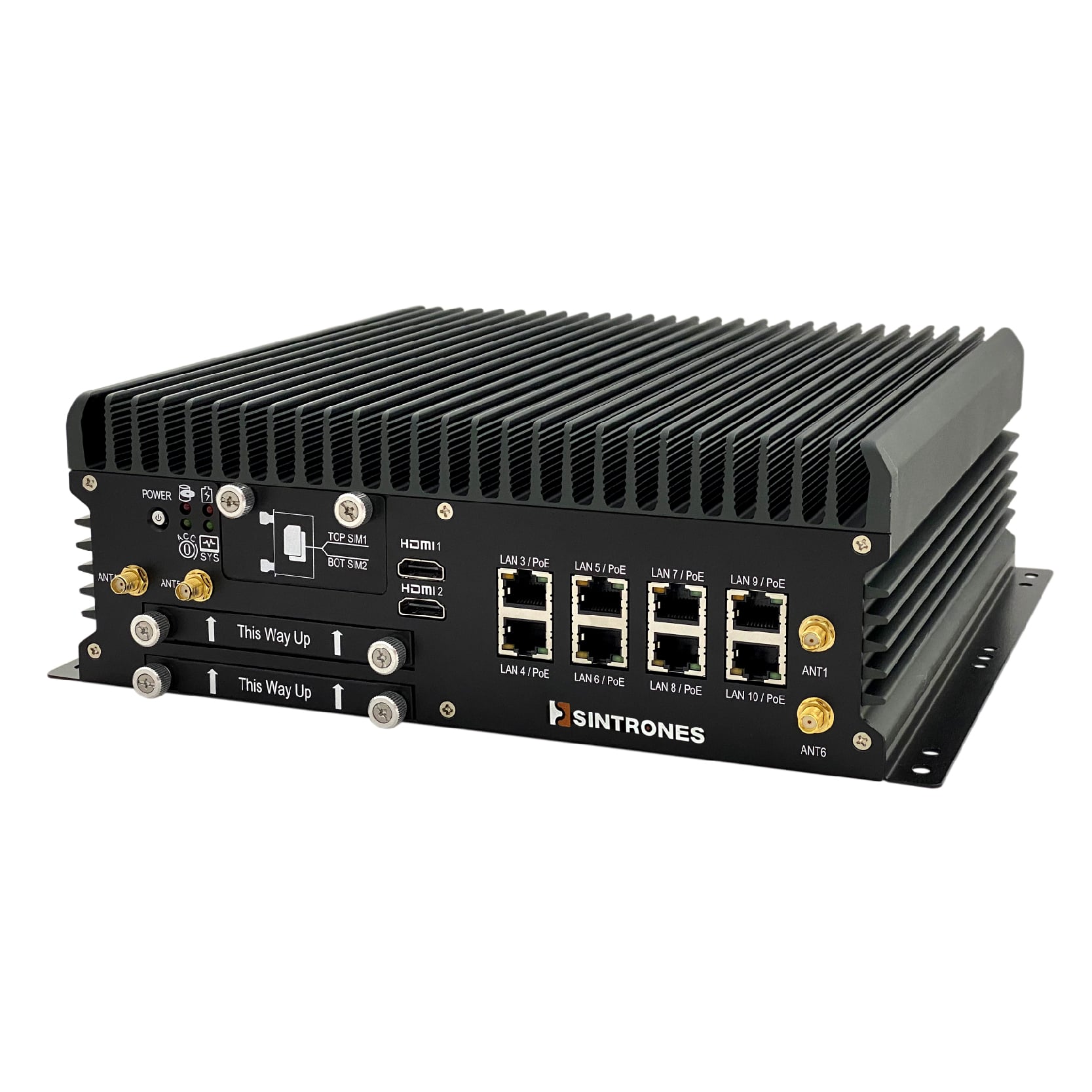

10th Gen Intel® Core™ i7-10700TE CPU w/ 10 x GbE (Supports 8 x PoE)/ 3 x COM/ 3 x DP/ 4 x USB 3.2 5Gbps/ 9-48V Input/ AI GPU Computing
Features
SYSTEM
Processor
Intel Gen10 Core i7-10700TE (16M Cache 2.0GHz up to 4.4GHz)
Chipset
Q470E
Memory
2 x DDR4 8GB SO-DIMM
Watchdog
1 ~ 255 Level Reset
TPM
2.0
GRAPHICS
CPU Built-in Graphics
Intel® UHD Graphics 630
Display Port
3 (Intel built-in GPU)
Resolution
Max Resolution: 4096 x 2340 @ 60Hz
AUDIO
Audio Codec
N/A
Line-out
1
Mic-in
1
Line-in
1
ETHERNET
LAN
10 x RJ45 Ports
(w/ 8 x M12X-Coded Connectors, Total Max.120W)
I/O
Serial Port
3 x RS 232/422/485 (option additional 1 x RS 232/422/485)
USB
4 x USB 3.2 5Gbps Ports
DIO
8 x DI (5~48VDC) and 4 x DO (5VDC, 100mA)
STORAGE
SSD/HDD
2 x 2.5” Drive Bay for SATA Type HDD/SSD
mPCIe
N/A
mSATA
N/A
M.2
1 x M.2 2280 M Key slot supports NVMe and SATA SSD
*Thermal heatsink is required for M.2 storage. Please contact sales representative for more information.
RAID
0, 1, 5
EXPASION
Mini PCI Express
2 x Full Mini-PCle Slots
1 x Full Mini-PCIe Slot w/ USB interface only for WWAN sharing 2 x SIM Card Sockets with M.2 B Key 3042 Slot
M.2
1x M.2 A-E Key 2230 slot
1 x M.2 B Key 3042 Slot
POWER
Power Input
9V – 48V DC Power Input
Power Protection
Automatics Recovery Short Circuit Protection
Smart Ignition
Vehicle Power Ignition for Variety Vehicle
Power-off Delay
Power off Delay Time Setting by BIOS and Software
Backup Battery Solution
Internal Battery Kit for 10 Mins Operating
(Charging Temp. 0~45oC, Discharging Temp. -10~60oC)
*UPS backup time varies depending on actual overall system power consumption and battery is required to be charged before using.
Patent No. : M447854 – Build-in Battery
MECHANICAL
Dimension
260(L) x 250(W) x 95(H) mm
Weight
5300g (bare-bone)
Construction
Aluminum Alloy
Mounting
Wall-mount
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40°C ~ 70°C w/0.6 m/s airflow (for barebone system)
*The operating temp. varies by accessories installed. Patent No. : M565941 – Thermal Cooling
Storage Temp.
-40°C ~ 80°C
Vibration & Shock
Vibration (with SSD):
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Shock Operating:
MIL-STD-810G, Method 516.6, Procedure I
Trucks and semi-trailers=15G (11ms) with SSD
IP Rating
N/A
CERTIFICATION
Certification
CE, FCC Class A, E-Mark, ECE R118, EN 50155, EN 45545-2 R25
Safety
N/A
OPERATIONAL SYSTEM
Windows
Windows 10 64bit
Linux
Ubuntu 20.04 64bit
Others
N/A
