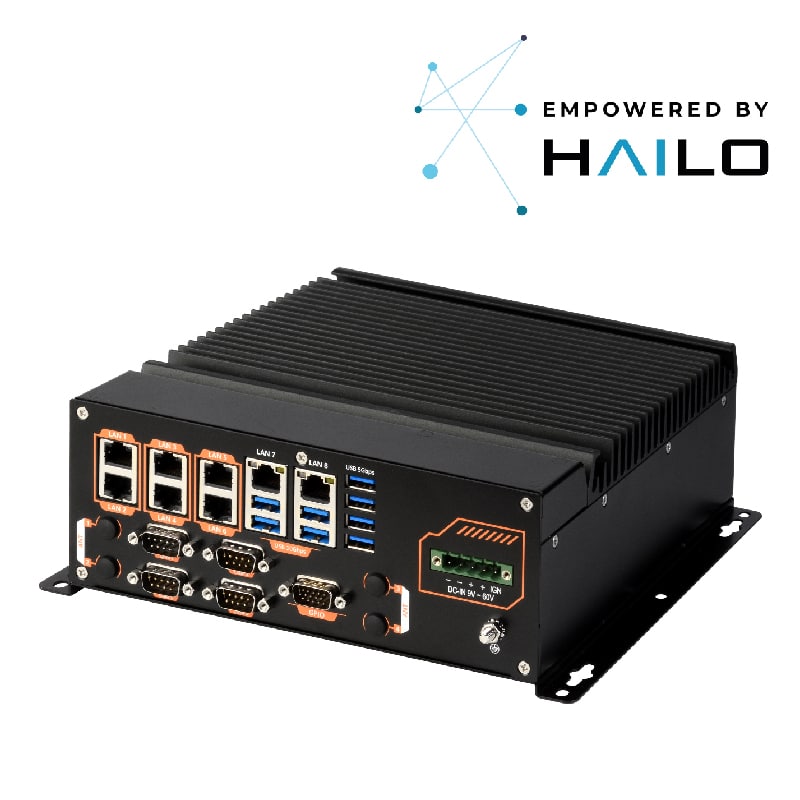

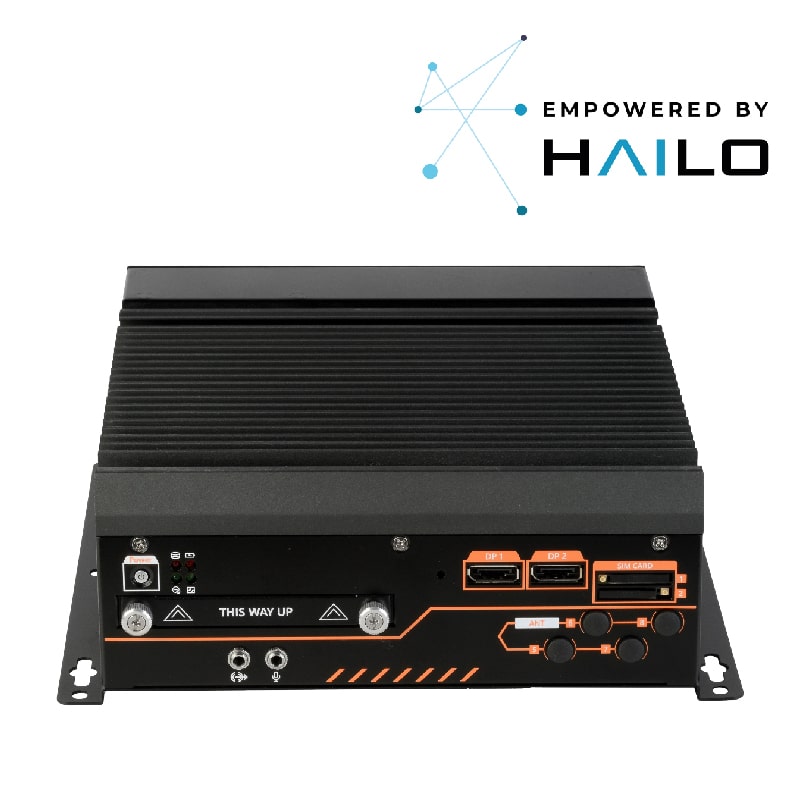

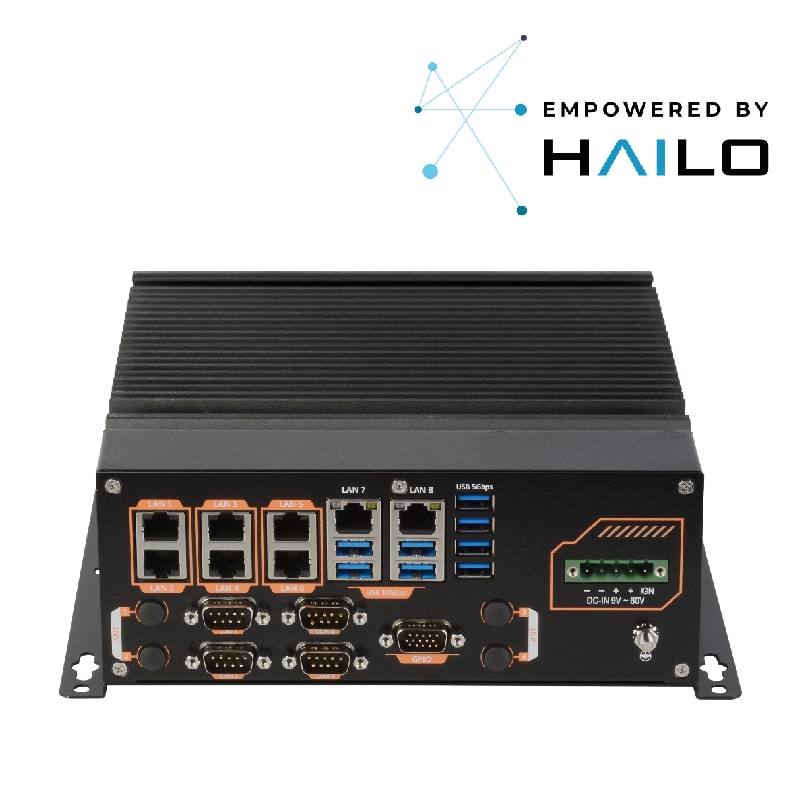

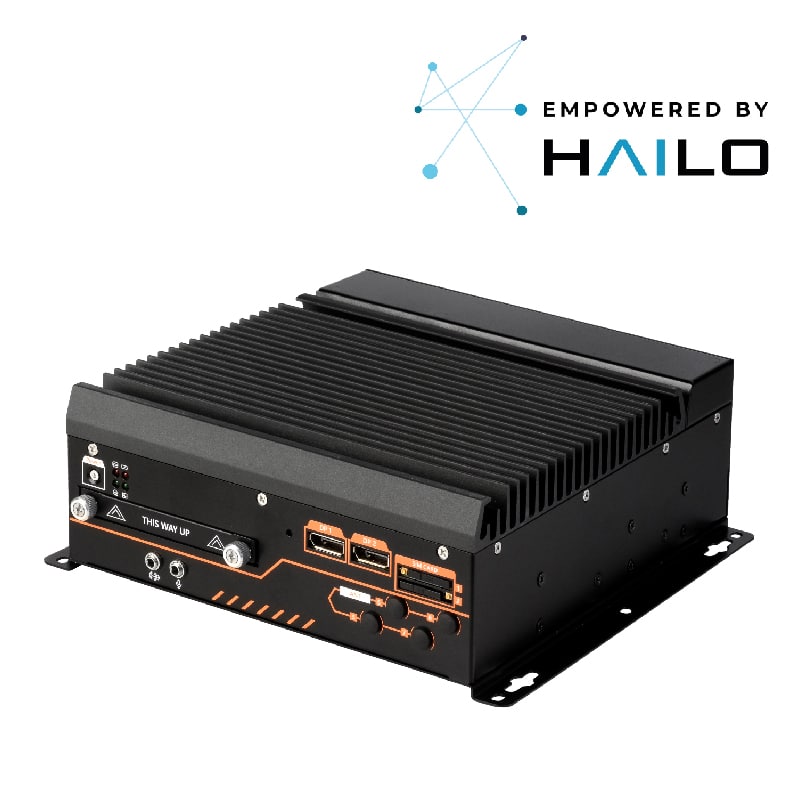

ABOX-5211(P)

AI GPU Computer for Edge Computing

10th Gen Intel® Core™ Processor / 8 x GbE (Optional 8 x PoE) / 2 x DP / 4 x USB 3.2 10Gbps / 4 x USB 3.2 5Gbps 9-60V Input Multi Camera AI Computer

Product Status: Available

Inquiry Datasheet

Features

10th Gen Intel® Core™ Processor
8 x DI, 4 x DO and 4 x RS-232/422/485
3 x M.2 2280 Key M Support NVMe SSD Storage
9-60V DC Power Input
Operating Temp.: -40°C~70°C
8 x GbE RJ45 (Optional 8 x PoE)

Introduction

The ABOX-5211(P) Series is powered by the 10th Gen Intel® Core™ i9-10900TE processor and boasts 8 x DI, 4 x DO, and 4 x RS-232/422/485 support. It is perfect for Industrial loT deployments, with high-performance computing and real-time capabilities certified by Intel® ESDQ (Edge Software Device Qualification) for Autonomous Mobile Robots (AMR). The Intel® UHD Graphics 630 Graphics and single-side I/O panel design, along with 9~60VDC power input, make it ideal for Factory Automation, Service Robots, Cellular V2X, Smart Retail, and any AloT/Industry 4.0 applications. Moreover, it is suitable for industrial automation, digital signage, outdoor video surveillance, and AGV/AMR. In addition, ABOX-5211(P) Series accelerates AI inferencing for Edge Computing applications by equipping up to two Hailo-8™ AI Accelerators, and a single Hailo-8™ AI Accelerator offers 26 TOPS inference performance.

SYSTEM

Processor

10th Gen Intel® Core™ i9-10900TE (20M Cache 2.0GHz up to 4.5GHz)
10th Gen Intel® Core™ i7-10700TE (16M Cache 2.0GHz up to 4.4GHz)
10th Gen Intel® Core™ i5-10500TE (12M Cache 2.3GHz up to 3.7GHz)
10th Gen Intel® Core™ i3-10100TE (6M Cache 2.3GHz up to 3.6GHz)
Intel® Celeron® Processor G5900TE (2M Cache 3.0GHz)

Chipset

Q470E

Memory

2 x DDR4 3200MHz SO-DIMM up to 64GB

Watchdog

1 ~ 255 Level Reset

TPM

2.0

GRAPHICS

Graphics Engine

Intel® UHD Graphics 630 for i9/i7/i5/i3
Intel® UHD Graphics 610 for G5900TE

DisplayPort

Resolution

Max Resolution (DP 1.2) : 4096 x 2340 @ 60Hz

AUDIO

Line-out

Mic-in

ETHERNET

LAN Chipset

7 x Intel® i210-AT and 1 x i219LM (support iAMT) Gb/s
Ethernet Controllers Onboard Support PXE and WOL

LAN

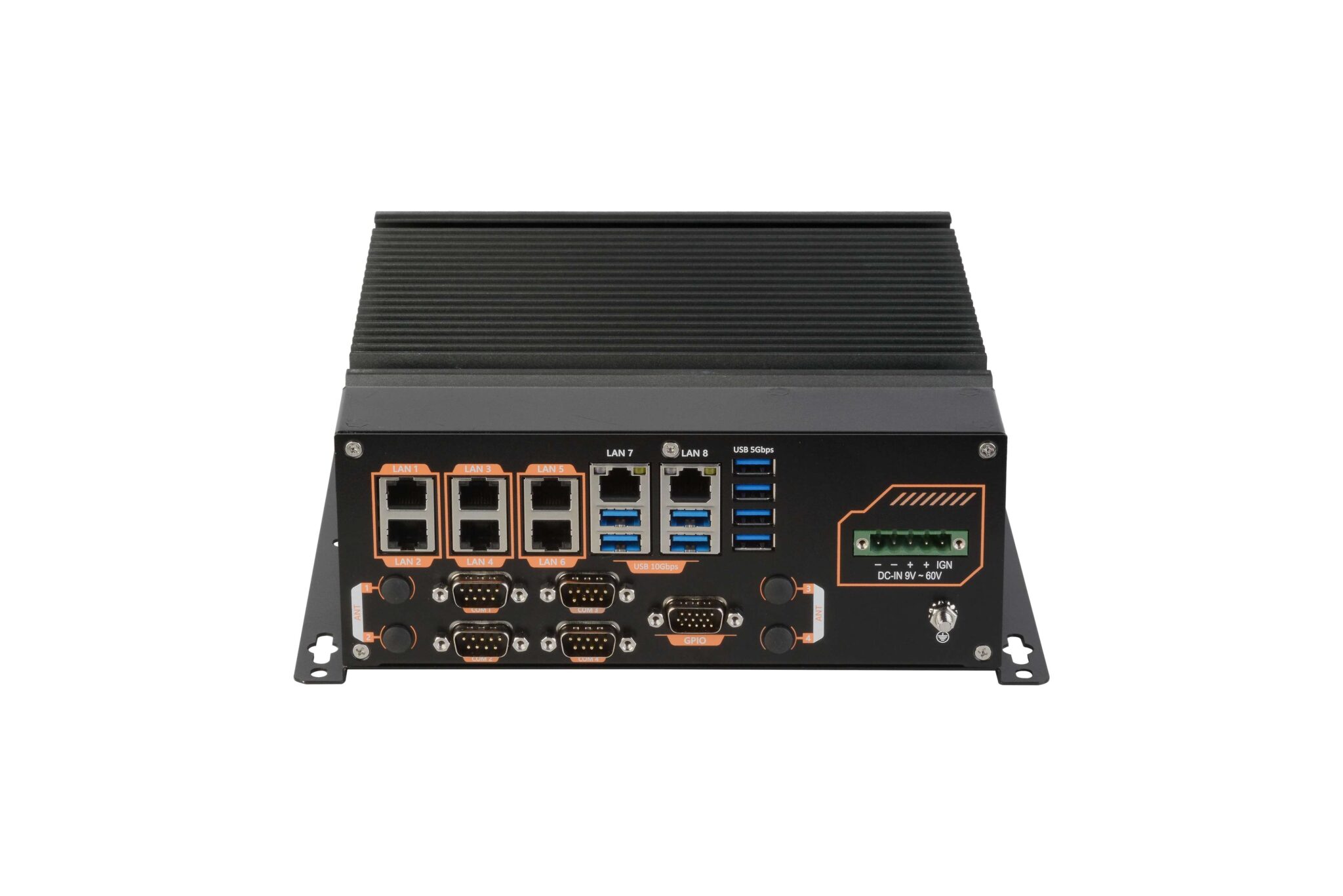

8 x RJ45 Ports for GbE (Optional 8 x POE total Max.120W)

I/O

Serial Port

4 x RS 232/422/485

USB

4 x USB 3.2 10Gbps
4 x USB 3.2 5Gbps

DIO

8 x DI (5~60VDC)
4 x DO (5VDC, 100mA)

STORAGE

SSD/HDD

1 x 2.5″ Drive Bay for SATA Type HDD/SSD (Rear Panel)

M.2

2 x M.2 2280 M Key supports NVMe
1 x M.2 2280 Key M supports NVMe/SATA

*Thermal heatsink is required for M.2 storage. Please contact sales window for more information

EXPANSION

Mini PCI Express

2 x Full Mini-PCle Slots (Support DIP Switch Enabled/Disabled SMBus Interface)

M.2

1 x M.2 B Key 3042/3052 for WWAN (USB3.0) with Dual SIM Slot
1x M.2 E Key 2230 slot for Wi-Fi (PCIe + USB)

POWER

Power Input

9V – 60V DC Power Input

Power Protection

Automatics Recovery Short Circuit Protection

Smart Ignition

Vehicle Power Ignition for Variety Vehicle

Power-off Delay Control

Power off Delay Time Setting by BIOS and Software

Backup Battery Solution

Internal Battery Kit for 10 Mins Operating
(P/N: BAT-5200 kit, Operating Temp. Charging 0~45°C, Duscharging -20 ~ 60°C)
* UPS backup time varies depending on actual overall system power consumption.

MECHANICAL

Dimension

240(L) x 242(W) x 85(H) mm

Weight

3680g (Barebone)

Construction

Aluminum Extrusion with Steel Chassis

Mounting

Wall-mount

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40°C ~ 70°C w/0.6 m/S airflow
*Operating temp. varies by accessories installed.

Storage Temp.

-40°C ~ 80°C

Vibration & Shock

IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

CERTIFICATION

Certification

CE, FCC Class A, E-Mark

OPERATIONAL SYSTEM

Windows

Windows 10 & 11 IoT Enterprise 64bit

Linux

Ubuntu 20.04 LTS 64bit

ORDERING INFORMATION

Model Number

ABOX-5211x-yy

(x=P=w/PoE, x=Empy=w/o PoE, yy=i9=i9-10900TE, yy=i7=i7-10700TE, yy=i5=i5-10500TE, yy=i3=i3-10100TE, yy=C1=G9500TE)

Description

10th Gen Intel® 10-Cores i9-10900TE / 8 x GbE (Optional 8 x PoE) / 2 x DP / 4 x USB 3.2 10Gbps / 4 x USB 3.2 5Gbps 9-60V Input AI Computing

State of Origin

Taiwan

OPTIONAL ACCESSORIES

DRAM

DDR4-3200 MHz SO-DIMM, 4GB~32GB, -40~85C

SSD

M.2 2280 B-M key NVMe TLC -40~85 C 64GB~1TB w/ Heatsink

M.2 2280 B-M key SATA TLC -40~85C 64GB~1TB w/ Heatsink

2.5 inch SATA TLC -40~85C 64GB~2TB

M.2 AI Acceleration Module

Wi-Fi

M.2 2230 A-E Key 802.11 a/b/g/n/ac, Wi-Fi 6E

Modem

M.2 3042 B key 5G & LTE Module

CAN Bus

MiniPCle CAN Bus Module

Battery Backup Kit

BAT-5200 Battery Kit, 5200mAh, Charge 0~45C, Discharge -20~60C
