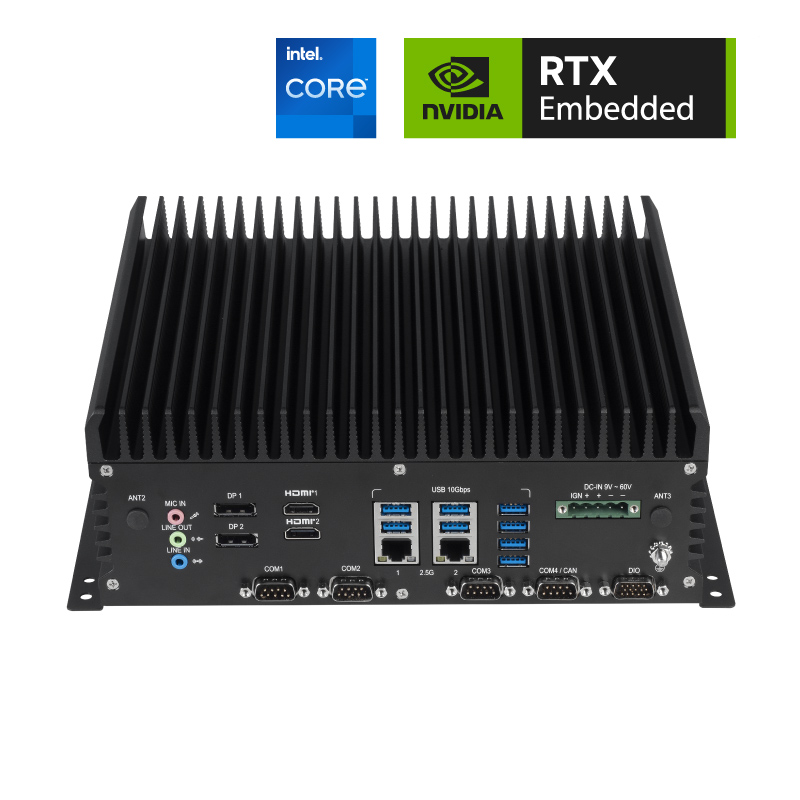

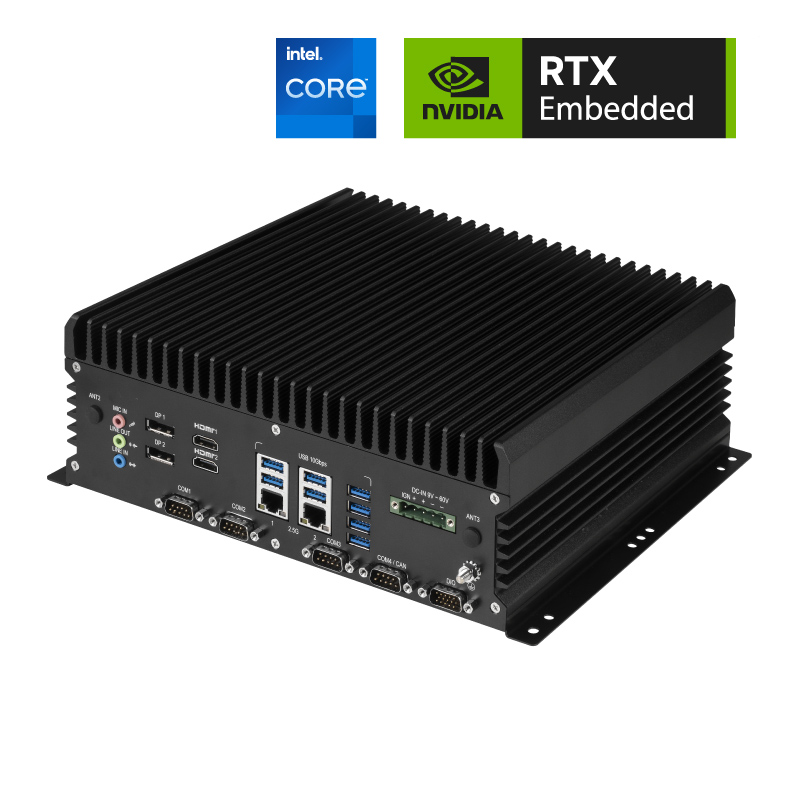

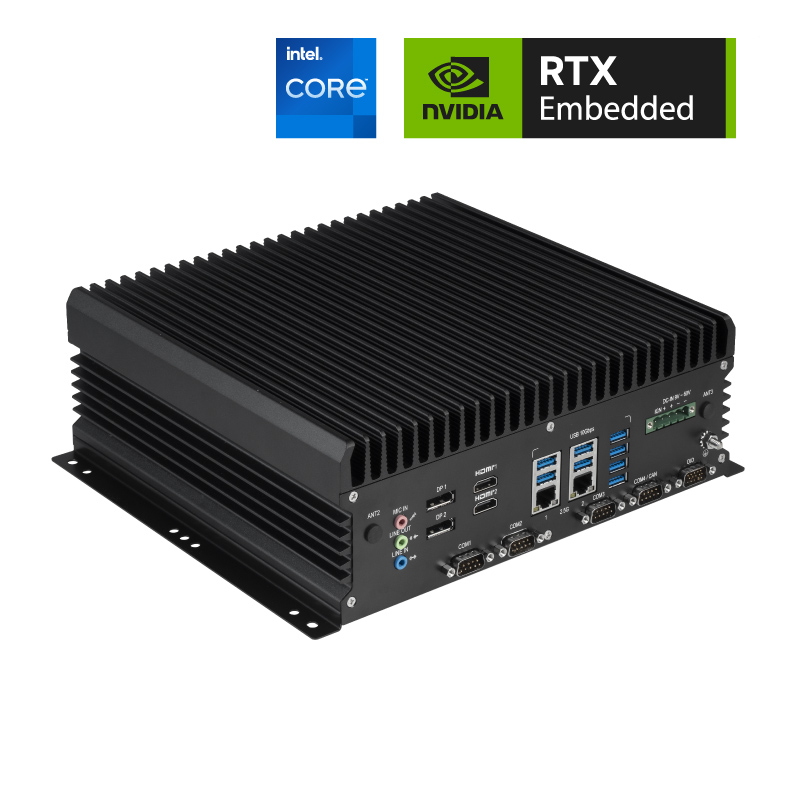

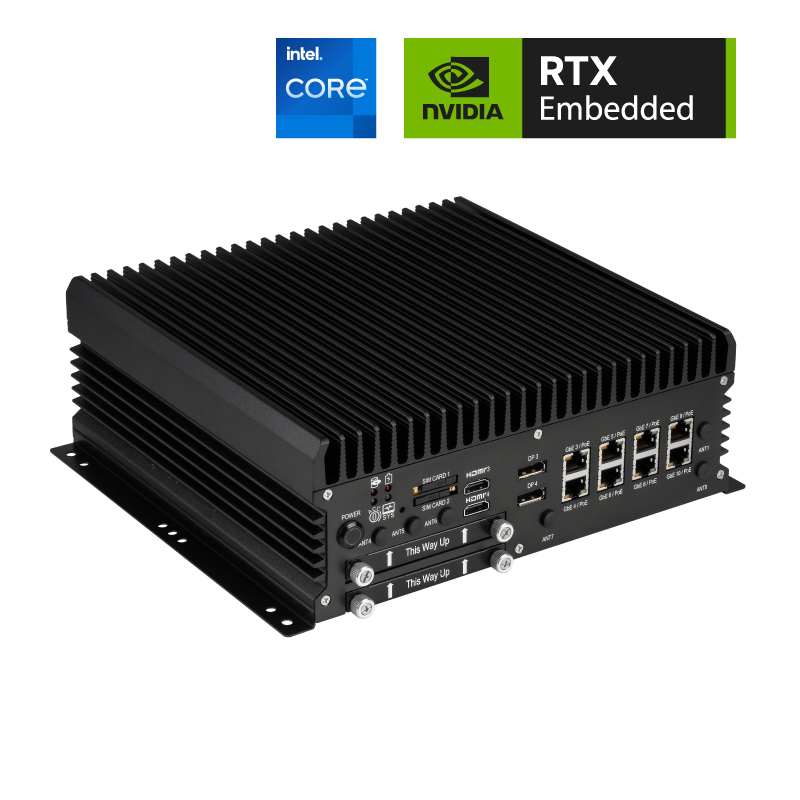

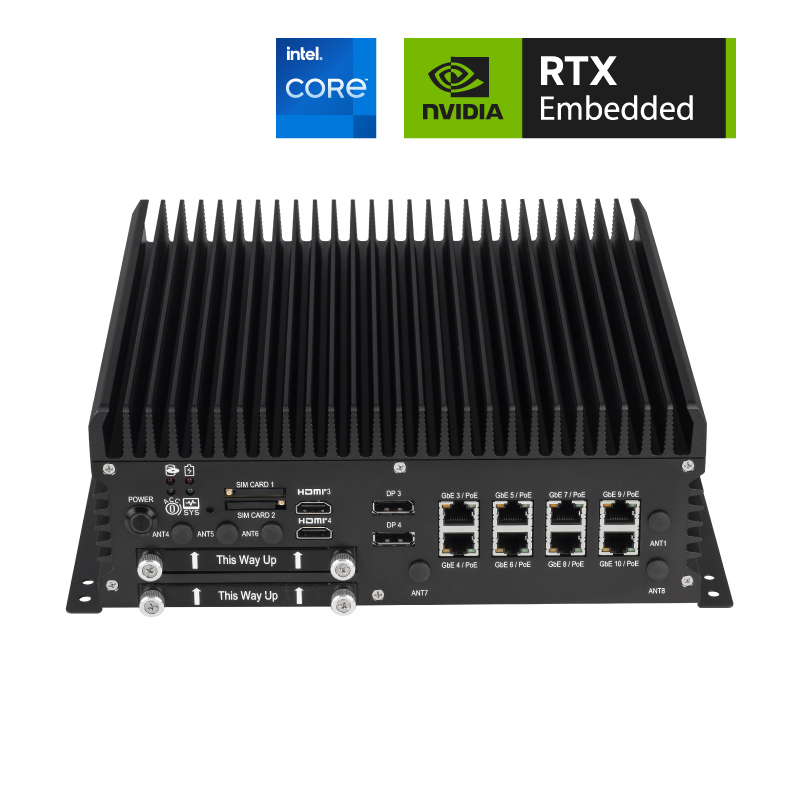

ABOX-5220(P)(G)

Intel® Core™ i9 processor 14900T
Intel® Core™ i7 processor 14700T
Intel® Core™ i5 processor 14500T
Intel® Core™ i3 processor 14100T

R680E

2 x SO-DIMM Support DDR5-4800 up to 64GB
(ECC Support with ECC DRAM)

System power on/off 1 ~ 255 min setting by BIOS

2.0

Processor Built-in GPU – Intel® UHD 700 Series Graphics

Optional Discrete GPU
・NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada
・Intel Arc A370E

Without Discrete GPU :
2 x HDMI®(Maximum Resolution : 4096 x 2160 @ 60Hz)

With Discrete GPU :
Additional 2 x HDMI (Maximum Resolution : 4096 x 2160 @ 60Hz)

Without Discrete GPU :
2 x DP 1.4 (Maximum Resolution : 7680 x 4320 @ 60Hz)

With Discrete GPU :
Additional 2 x DP 1.4 (Maximum Resolution : 7680 x 4320 @ 60Hz)

1

1

1

2 x I226-IT 2.5GbE RJ45 and 8 x I210-AT GbE RJ45
(Optional PoE with Total 120W Power Budget and M12 X-coded Connectors)

4 x RS-232/422/485

8 x USB 3.2 Gen 2×1 10Gbps

8 x DI (9~60VDC),  4 x DO (5V, 100mA)

2 x ADC (9~60VDC)

2 x M.2 2280 Key M for PCIe 4.0 x4 NVMe SSD
1 x M.2 2280 Key M for PCIe 4.0 x4 NVMe or SATA SSD (Auto Dectection)
2 x 2.5” Drive Bay for SATA Type SSD
* Thermal solution is required for M.2 NVMe and SATA SSD

2 x Mini-PCIe

2 x M.2 3042/52 Key B for WWAN (USB3.0) with Dual SIM Support
1 x M.2 2230 Key E for WiFi

DC  9-60V

OCP, OVP, Surge and Reversed Polarity Protection

Ignition Detection, and Power off Delay Time Setting by Software

Optional Internal Battery Kit for 10 Mins Operating Time (Charging Temp. 0~45°C, Discharging Temp. -10~60°C)

* UPS backup time varies depending on actual overall system power consumption and battery is required to be charged before using.

290(L) x 250(W) x 98(H) mm

8.5kg

Aluminum Alloy

Wall-mount

10% RH – 90% RH (non-condensing)

-40°C ~ 70°C w/0.6 m/s airflow (for barebone system)

*The operating temp. varies by accessories installed. Patent No. : M565941 – Thermal Cooling

-40°C ~ 80°C

MIL-STD-810G, Method 514.6, Procedure I, Cat.4 (Operating)
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

MIL-STD-810G, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)

Certified with CE, FCC and E-Mark
Compliant with EN 50155, EN 45545-2 R25 Standards

Windows 10 IoT Enterprise LTSC
Windows 11 IoT Enterprise LTSC
Ubuntu Desktop 22.04

ABOX-5220xy-zz (x= P= w/PoE, x= Empty= w/o PoE, y=G=w/ Discrete GPU, zz=i9=i9-14900T, zz=i7=i7-14700T, zz=i5=i5-14500T, zz=i3=i3-14100T

Intel® 14th Generation Core™ Processor with Optional NVIDIA RTX™ Embedded GPU for AI Acceleration On-Board Computer

Made in Taiwan
