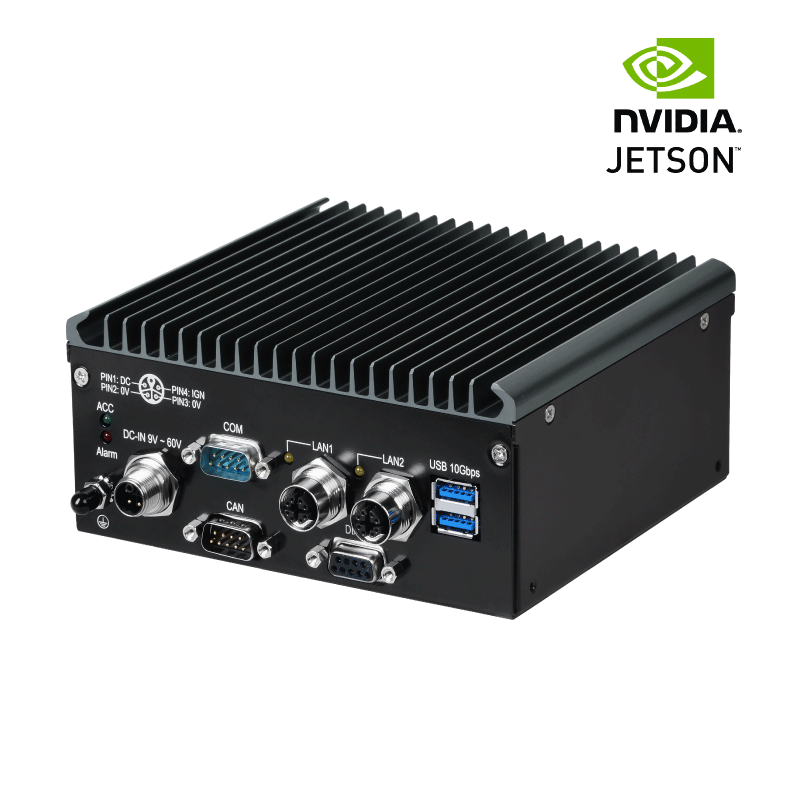

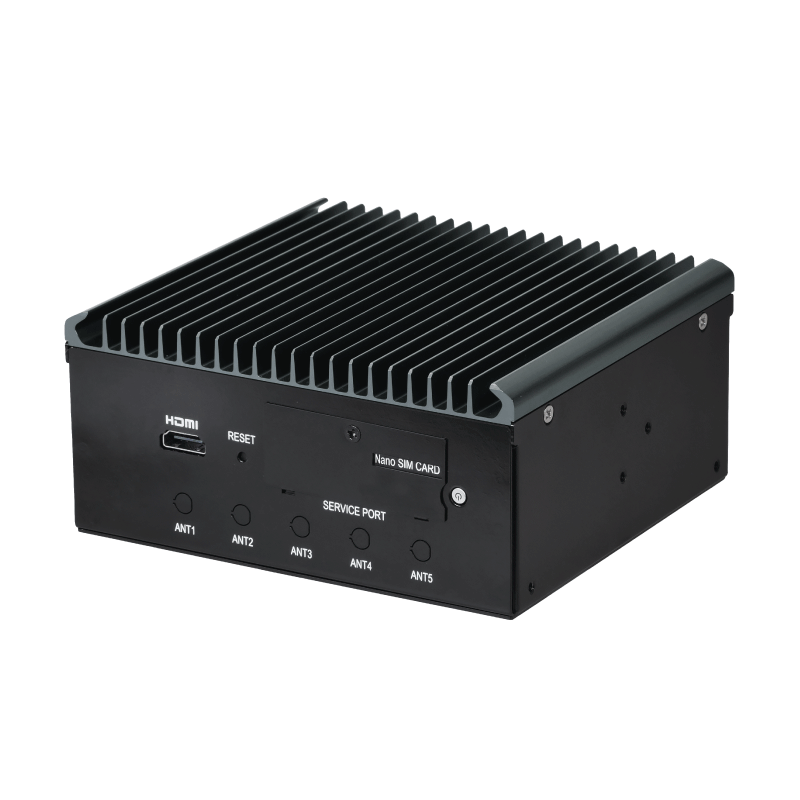

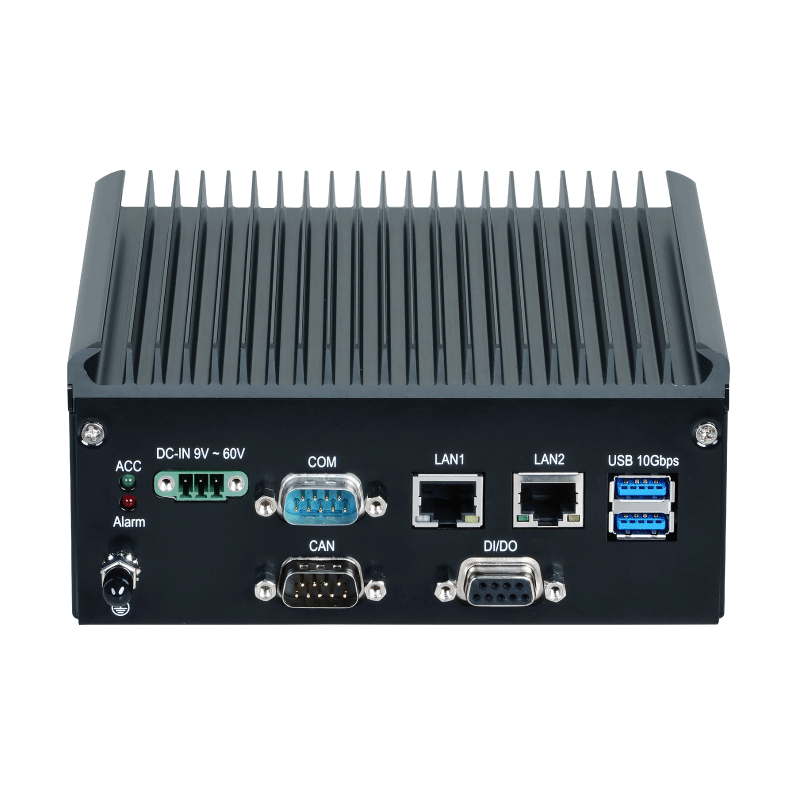

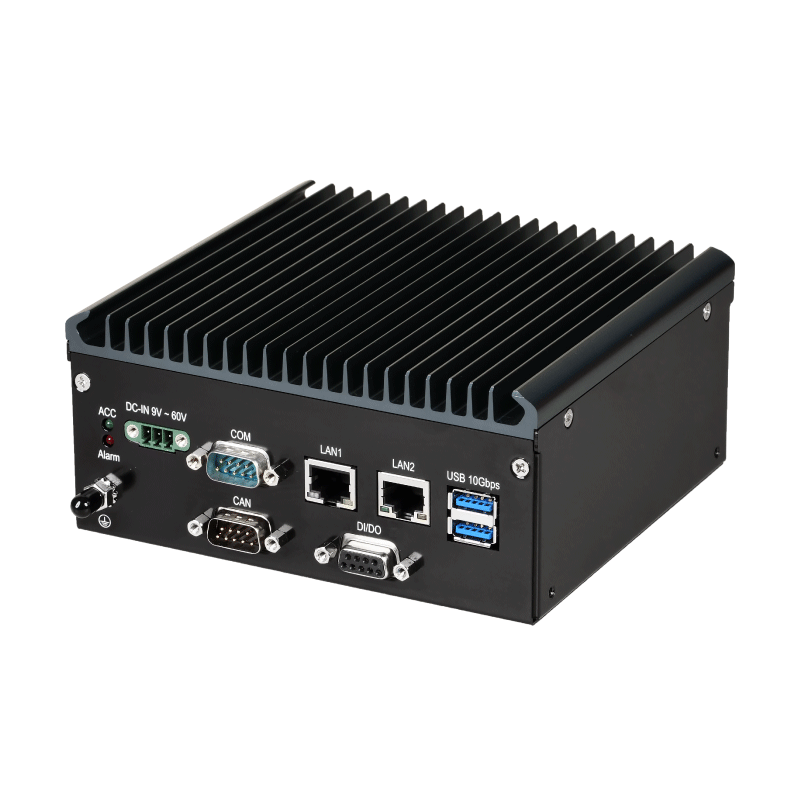

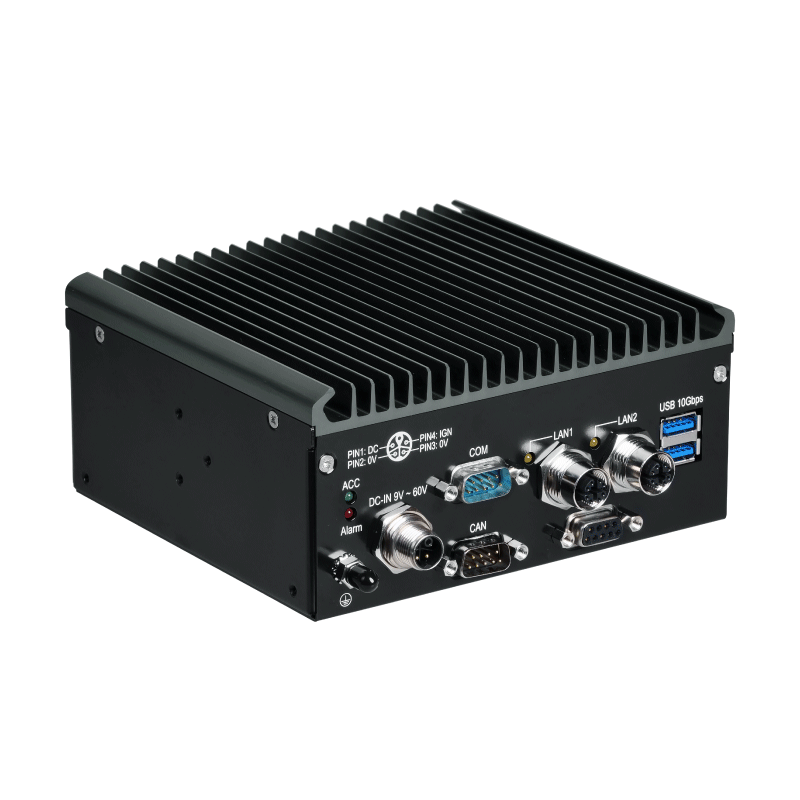

IBOX-600 Series

NVIDIA® Jetson Orin NX/Nano Fanless Embedded System

NVIDIA® Jetson Orin NX/Nano Fanless Edge AI Computer

Product Status: Available
Inquiry Datasheet
3D Dimension (RJ45) 3D Dimension (M12X) EMC (EN 55032/35) EMC (EN 50121) FCC

Features

  • ARM® Cortex®-A78AE 8-core Processor
  • 1024 NVIDIA® CUDA® Cores, 32 Tensor Cores
  • 3 x M.2 Slots for Wi-Fi / WWAN / SSD Expansion
  • 1 x CAN FD for Vehicle Connection
  • Selectable for RJ-45 / M12X Ethernet Connetors
  • JetPack™ SDK Includes Development Tools
  • Power Input 9~60VDC with Smart Power Management
  • Operating Temperature -25°C ~ 70°C
  • Patented Backup Battery Kit (UPS) for Emergencies

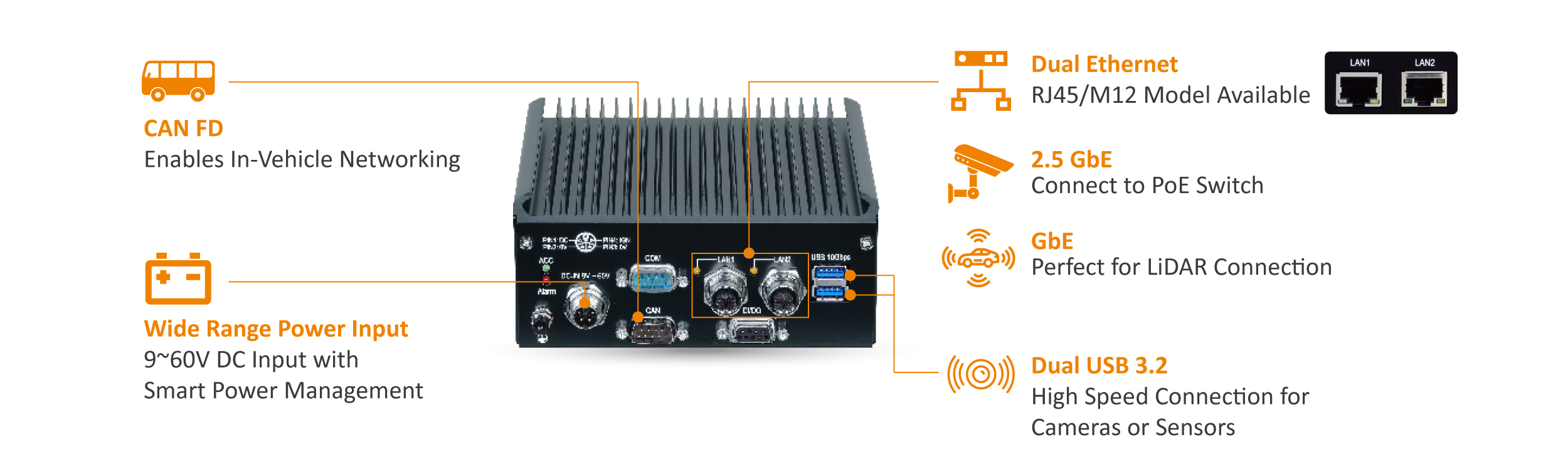

Rich I/O Designed for Edge AI Computing Applications

Jetson Embedded System IBOX-600

Introduction

Elevate your next-gen AI application with IBOX-600, an Fanless AI computer powered by NVIDIA Jetson platform. Driven by ARM 8-core Cortex-A78E processor, 1024 NVIDIA CUDA cores, and 32 Tensor cores, IBOX-600 is perfect for intelligent transportation infrastructure and advanced driver assistance systems, enabling high-performance Edge AI applications.

IBOX-600 features versatile expansion slots and 2 high-speed Ethernet ports, supporting a wide input voltage range. These features come in one compact chassis with fanless thermal design, allowing effortless installation in limited space.

Preinstalls with NVIDIA JetPack, IBOX-600 comes equipped with comprehensive software tools for artificial intelligence and Machine Learning development, including CUDA Toolkit, TensorRT, cuDNN, and multimedia API. SINTRONES’s robust system synergizes with NVIDIA’s extensive resources, accelerating the overall implementing time of Edge AI system.

SYSTEM
Module

• NVIDIA® Jetson Orin™ NX 16GB – 100 TOPS
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)

• NVIDIA® Jetson Orin™ NX 8GB – 70 TOPS
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)

• NVIDIA® Jetson Orin™ Nano 8GB – 40 TOPS
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5)

• NVIDIA® Jetson Orin™ Nano 4GB – 20 TOPS
(512 CUDA cores + 6-cores ARM Cortex-A78AE CPU + 4GB LPDDR5)

Security

Internal Security Subsystem with TrustZone

INTERFACE
Ethernet

2 x RJ-45/M12 X-coded for 1 x 2.5GbE & 1 x GbE

USB

2 x USB 3.2 Type-A
* Two ports share 10Gbps bandwidth

Video Output

1 x HDMI® 2.1 Type-A Supports 3840 x 2160@30Hz

Audio

1 x HD Audio from the HDMI®

Serial Port

1 x DB-9 for RS-232/422/485

CAN Bus

1 x CAN FD

GPIO

1 x DB-9 for 4 x DI / 4 x DO

Mgmt. Port

1 x USB Type-C for System Recovery (Device only)

SIM Card

1 x Nano SIM Card Slot

Antenna

5 x Pre-cut Holes for External SMA Antenna

RTC Battery

High-capacity Coin Cell Battery for RTC

UPS

UPS for System Power Backup

INTERNAL EXPANSION
M.2

• 1 x M.2 2230 Key E slot
• 1 x M.2 3042/52 Key B slot

mPCIe

• 1 x mPCIe Full-size slot (USB 2.0 supported)

STORAGE
Internal

1 x Pre-Installed NVMe SSD (240GB/480GB)

SOFTWARE
Operating System / SDK

NVIDIA® JetPack 5.1.1 SDK includes Jetson Linux, CUDA 11.4, TensorRT 8.5.2, cuDNN 8.6.0

ENVIRONMENTAL
Operating Temp.

-25 ~ 70ºC, ambient w/ 0.6m/s airflow
*Operating temp. varies by accessories installed.

Storage Temp.

-40 ~ 80ºC

Relative Humidity

10% RH – 90% RH (non-condensing)

Certification / Standard

CE, FCC Part-15 Class A, E-Mark, EN50155, EN45545 (R25)

Vibration

• Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810G – Method 514.6, Procedure I, Category 4

Shock

MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD

POWER
Power Input

1 x DC 9 ~ 60V with Power Management, OCP and OVP

MECHANICAL
Construction

Aluminum Alloy

Thermal Design

Fanless Passive Cooling Design

Mounting Method

DIN-rail, Wall Mount

Weight

1,370 g

Dimensions

150 mm (L) x 135 mm (W) x 69 mm (H)

ORDERING INFORMATION
Model Number

IBOX-600-xxxx-yyyyy (xxxx= = ETH w/ RJ-45, xxxx=M12X= ETH w/ M12 X-coded)
yyyyy=ONX16=Jetson Orin NX 16GB / yyyyy=ONX8=Jetson Orin NX 8GB
yyyyy=ON8=Jetson Orin Nano 8GB / yyyyy=ON4=Jetson Orin Nano 4GB
*Jetson Orin SoM Lifecycle is available through January 2030.

Description

NVIDIA® Jetson Orin NX/Nano SoM w/ 2x LAN/ 1x HDMI® / 1x CAN bus/ DC 9-60V/ Intelligent Computer

State of Origin

Made in Taiwan

OPTIONAL ACCESSORIES
Wi-Fi

M.2 Wi-Fi Module

WWAN Modem

M.2 WWAN Modem

GPS

mPCIe GPS Module

Mounting kit

DIN Rail / VESA Kit
