IBOX-601-M12X

• NVIDIA® Jetson Orin™ NX 16GB – 100 TOPS
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)

• NVIDIA® Jetson Orin™ NX 8GB – 70 TOPS
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)

• Intel® 2.5GbE, SoM Built-in GbE

• Platform Security Controller (PSC), Security Engine (SE)

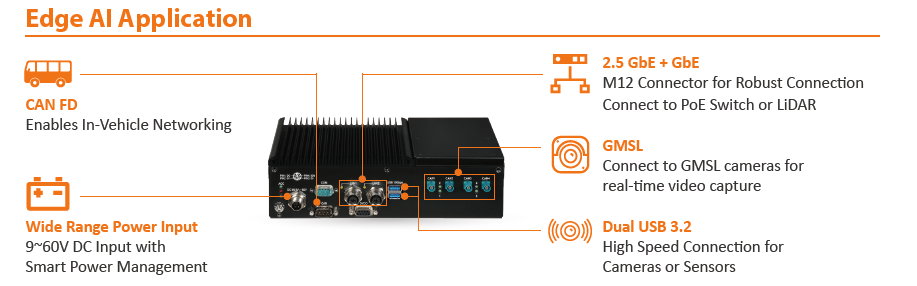

• 2 x M12 X-coded for 1 x 2.5GbE & 1 x GbE

• 2 x USB 3.2 Type-A
* Two ports share 10Gbps bandwidth

• 1 x HDMI 2.1 output supports 4K resolution

• 1 x HD Audio from the HDMI

• 1 x DB-9 for RS-232/422/485

• 4 x FAKRA for GMSL-2 cameras

• 1 x DB-9 for CAN FD

• 1 x DB-9 for 4 x DI / 4 x DO

• 1 x USB Type-C for system recovery (Device only)

• 1 x Nano SIM card slot

• 5 x Pre-cut holes for external SMA antenna

• 1 x M.2 2230 Key E slot
• 1 x M.2 3042/52 Key B slot with nano SIM card slot

• 1 x mPCIe full-size slot (USB.2.0 supported)

• 1 x M.2 2280 Key M slot supports NVMe SSD (Pre-installed system BSP)

• 1 x M12 K-coded for DC-IN 9 ~ 60V
• Supports Smart Power Management, OCP and OVP

• High-capacity coin cell battery for RTC

• Backup battery for system power backup

• NVIDIA® JetPack including Jetson Linux, NVIDIA® development tools

• 25°C ~ 70°C (-13°F ~ 158°F), ambient w/ 0.6m/s airflow
*Operating temp. varies by accessories installed.

• -40°C ~ 80°C (-40°F ~ 176°F)

• 10% RH – 90% RH (non-condensing)

• Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810G – Method 514.6, Procedure I, Category 4

• MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD

• CE, FCC Part-15 Class A, E-mark, EN50155, EN45545-2 (R25)

• Aluminum alloy

• Fanless passive cooling design

• DIN-rail, Wall-mounting

• 1870 g (TBC)

• 270.2 mm (L) x 270.2 mm (W) x 69 mm (H)

M.2 2230 Wi-Fi Module

M.2 3042/52 WWAN Modem

mPCIe GPS Module

BAT-2300v2
