NVIDIA® Jetson AGX Orin™ Edge AI Fanless Computer
Features
*This is a customized specification. If you have any needs, please contact our sales representative.
SYSTEM
Module
Network
Marvell® Industrial 10GbE, Intel® Industrial 2.5GbE
Security
Security Boot, Arm TrustZone

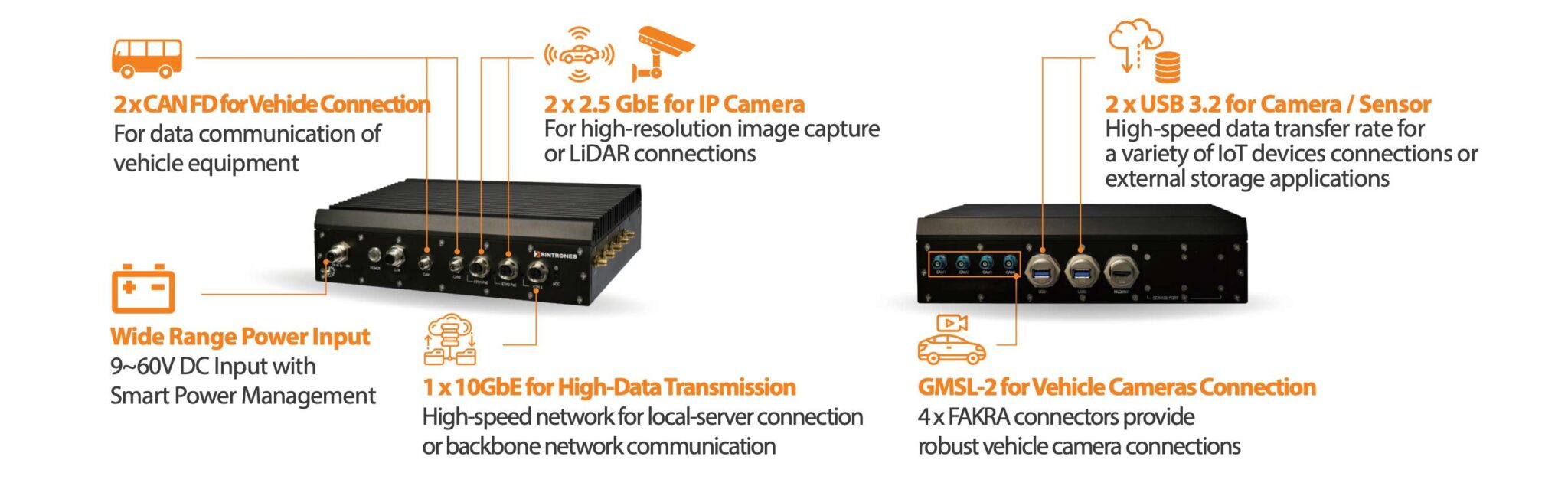

INTERFACE
Ethernet
1 x 10GbE, 2 x 2.5GbE w/ 2 x IEEE 802.3at PoE PSE Class 4 (PoE+ 30 watts)
(3 x Phoenix Contact® M12 X-coded connectors)
2 x USB Type-A/IP67 connector for USB 3.2
* One port share 10Gbps bandwidth
1 x HDMI Type-A/IP67 connector for HDMI 2.1 output
1 x HD Audio from the HDMI
1 x M12 A-coded connector for RS-232/422/485
2 x M8 A-coded connectors for CAN FD
1 x USB Type-C for System Recovery (Device only)
4 x FAKRA-Z connectors for GMSL-2 cameras
1 x Nano SIM card slot
POWER
Supply Voltage
1 x Phoenix Contact® M12 K-coded connector for DC-IN 9~60V
OCP, OVP, Surge and Reversed Polarity Protection
Ignition Detection with Smart Power Management
High-capacity coin cell battery for RTC
Backup battery for system power backup
SOFTWARE
Operating System / SDK
NVIDIA® JetPack including Jetson Linux, NVIDIA® development tools
INTERNAL EXPANSION
M.2 Slot
1 x mPCIc Full size slot (USB.2.0 supported)
STORAGE
Type
MECHANICAL
Dimension
300(L) x 190(W) x 77.5(H) mm
Weight
5,100g (Barebone)
Construction
Aluminum Alloy
Mounting
Wall-mount
IP66
ENVIRONMENT
Operating Temp.
-25°C ~ 70°C w/0.6 m/s airflow (for barebone system)
*Operating Temperature Varies by Accessories Installed.
Storage Temp.
-40°C ~ 85°C
Relative Humidity
10% RH – 90% RH (non-condensing)
Vibration
MIL-STD-810G, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)
CERTIFICATION
Certification
CE, FCC Class A, E-Mark, ECE R118, EN50155*, EN45545-2 (R25) *On going
ORDERING INFORMATION
Model No.
*Without an external NVMe SSD, the Jetpack will be pre-installed in the internal 64GB eMMC Jetson Orin SoM Lifecycle is available through January 2030.
Description
NVIDIA® Jetson AGX Orin™ w/ 1x 10GbE / 2x 2.5GbE / 1x HDMI / 2x CAN FD/ DC 9-60V/ Intelligent Computer
State of Origin
Made in Taiwan
Optional Accessory
M.2 2280 NVMe SSD 480GB / 960GB
M.2 2230 Wi-Fi Module
mPCIe GPS Module
