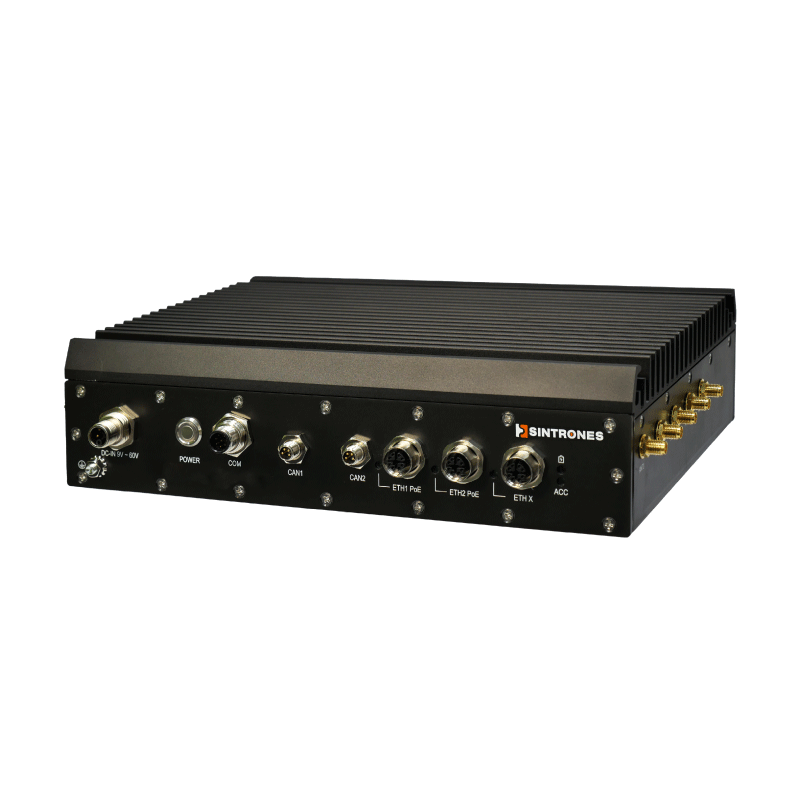

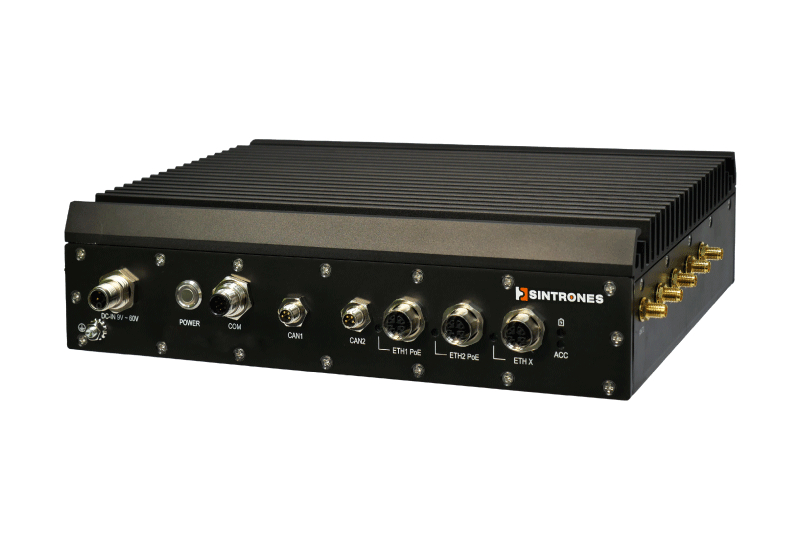

NVIDIA® Jetson AGX Orin Edge AI Embedded Computer with T1 Automotive Ethernet

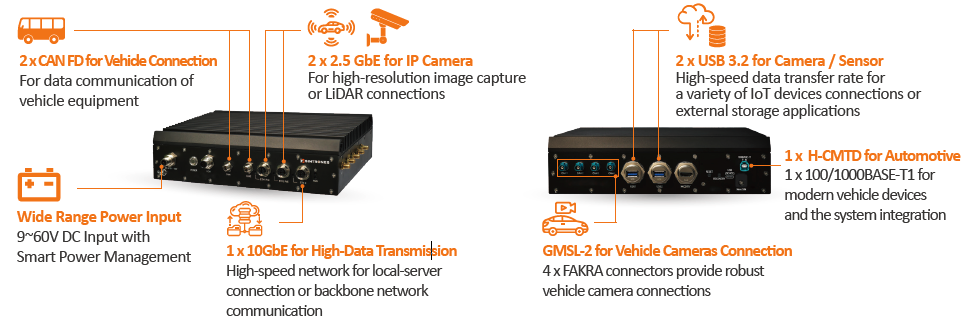

Features
• NVIDIA® Jetson AGX Orin™ 64GB SoM with 2048 CUDA Cores
• 100/1000BASE-T1 Automotive Ethernet Support
• 4 x GMSL-2 Cameras Support
• 1 x 10GbE for High-Speed Data Transmission
• 2 x Ethernet with PoE Support
• Optional Backup Battery for Emergency
SYSTEM
Module
NVIDIA® Jetson AGX Orin™ 64GB
(2048 CUDA cores + 12-core ARM Cortex-A78AE CPU + 64 GB LPDDR5)
NVIDIA® Jetson AGX Orin™ 32GB
(1792 CUDA cores + 8-core ARM Cortex-A78AE CPU + 32 GB LPDDR5)
Network
1 x Marvell® T1, 1 x Marvell® Industrial 10GbE, 2 x Intel® 2.5GbE
Security
Platform Security Controller (PSC), Security Engine (SE)
The self-reset mechanism for unresponsive system
INTERFACE
Ethernet

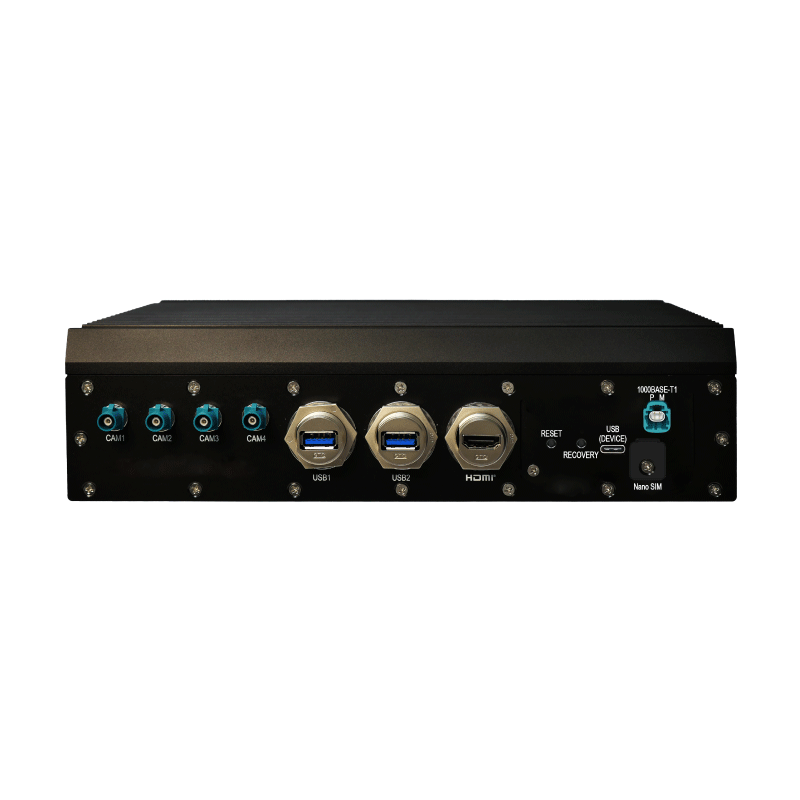

1 x H-CMTD T1 connector, 3 x M12 X-coded connectors (Phoenix Contact®)
2 x USB Type-A connector for USB 3.2
1 x HDMI Type-A connector for video output
1 x HD Audio from the HDMI
1 x RS-232/422/485 via M12 connector
2 x USB Type-A connector for USB 3.2
1 x USB Type-C for System Recovery (Device only)
7 x Antenna holes
INTERNAL EXPANSION
M.2 Slot
1 x mPCIc Full size slot (USB.2.0 supported)
STORAGE
Type
1 x Internal 64GB eMMC (Pre-installed system BSP)
1 x M.2 2280 Key M supports NVMe SSD
POWER
Power Input

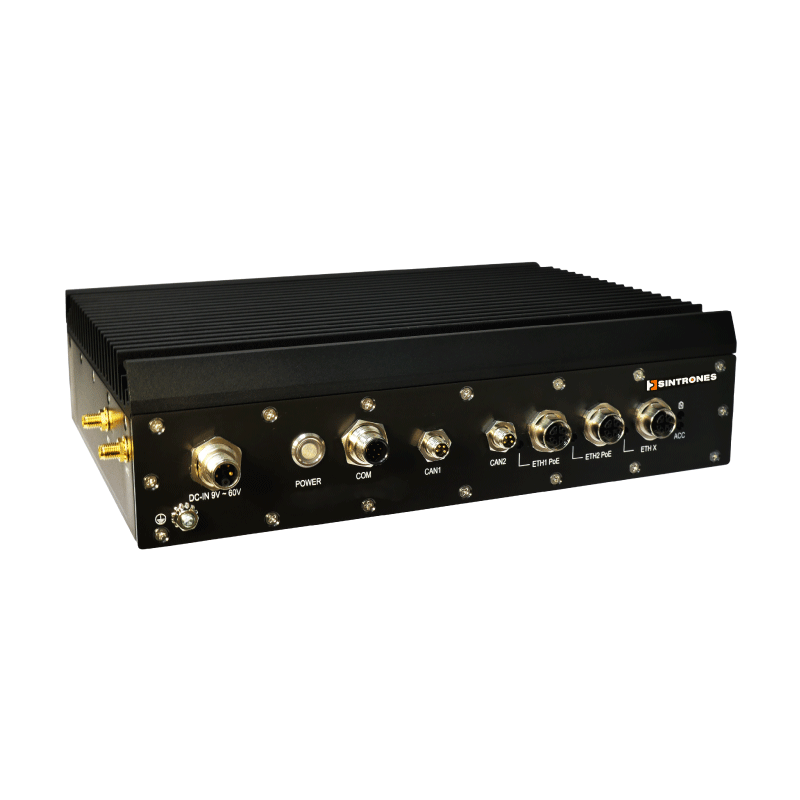

DC 9V-60V for 12/24/48V via M12 K-coded connector (Phoenix Contact®)
OCP, OVP, Surge Protection, and Reversed Polarity Protection
Supports Smart Power Managemen
High-capacity coin cell battery for RTC
Backup battery for system power backup
SOFTWARE
Operating System / SDK
NVIDIA® JetPack 5.1.3 above, including Jetson Linux, and NVIDIA® development tools
ENVIRONMENT
Operating Temp.
-25°C ~ 70°C (-13°F ~ 158°F), with SSD, ambient w/ air flow 0.6m/s (ONX8 model)
Storage Temp.
-40°C ~ 80°C
Relative Humidity
10% RH – 90% RH (non-condensing)
Vibration (with SSD)
• Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis • MIL-STD-810H – Method 514.6, Procedure I, Category 4
MIL-STD-810H – Method 516.6, Procedure I, trucks and semi-trailers=15G (11ms) with SSD
MECHANICAL
Construction
Aluminum Alloy
Mounting
Wall-mount
Dimension
300 (L) x 190 (W) x 77.5 (H) mm (11.9 x 7.5 x 3.06 inch)
Weight
5,000g
IP40
CERTIFICATION
Certification
CE, FCC Class A, E-Mark, ECE R118, EN50155*, EN45545-2 (R25)
ORDERING INFORMATION
Model No.
IBOX-650P-T1-01-JAO64｜NVIDIA® Jetson AGX Orin™ 64GB / 1 x T1 / 1 x 10GbE / 2 x PoE / 4 x GMSL-2
IBOX-650P-T1-01-JAO32｜NVIDIA® Jetson AGX Orin™ 32GB / 1 x T1 / 1 x 10GbE / 2 x PoE / 4 x GMSL-2
IBOX-650P-T1-JAO64-LE｜NVIDIA® Jetson AGX Orin™ 64GB / 1 x T1 / 1 x 10GbE / 2 x PoE
IBOX-650P-T1-JAO32-LE｜NVIDIA® Jetson AGX Orin™ 32GB / 1 x T1 / 1 x 10GbE / 2 x PoE
Description
NVIDIA® Jetson AGX Orin™ 64GB SoM w/ 1 x T1 / 1 x 10GbE / 2 x 2.5GbE / 2x PoE / 4 x GMSL-2 / 2 x CAN FD / DC 9-60V / Edge AI Computing
State of Origin
Made in Taiwan
Optional Accessory
M.2 2280 NVMe SSD 240GB / 480GB / 960GB
M.2 2230 Wi-Fi Module
M.2 3042/52 WWAN Modem
M.2 2242 GPS Module
BAT-2300v2 (Operating Temp. : -10°C ~ 60°C (-4°F ~ 140°F))
150W 100-240VAC to 12VDC Power Adapter
