Product

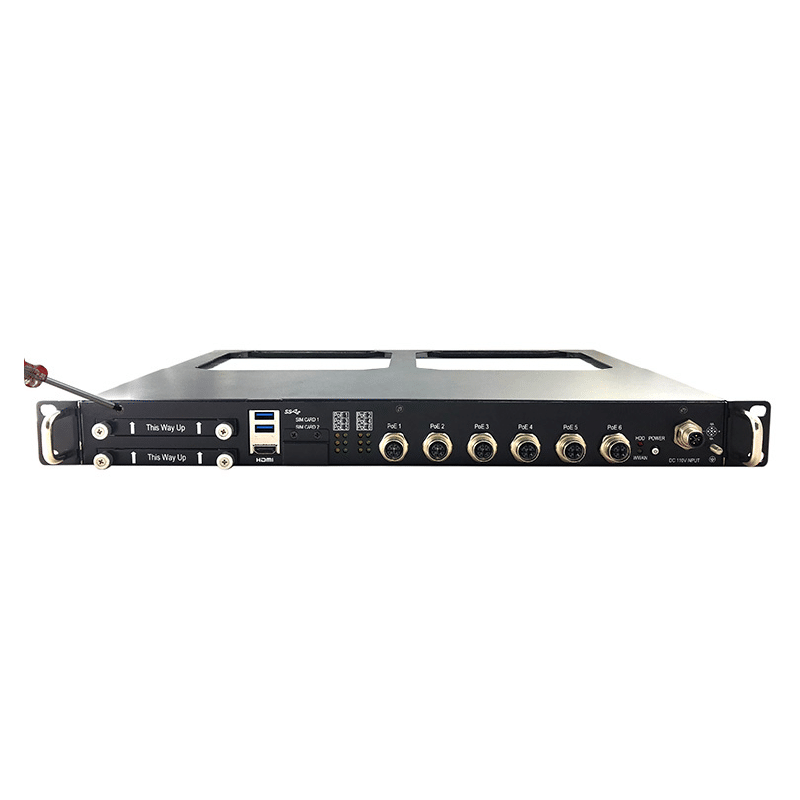

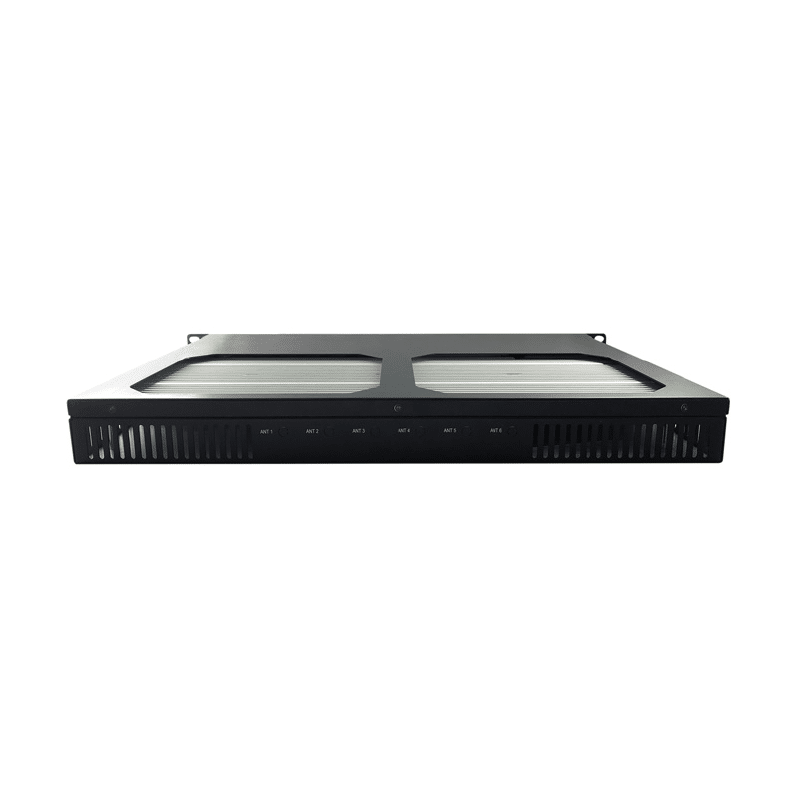

RBOX-1000-M12X

In-Vehicle Telematics Computing with Rackmount

Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input / 6 x GbE with optional PoE In-Vehicle Computer

Product Status: Available

Features

  • Intel® Core™ i7 Processor 2.6 GHz up to 3.4 GHz

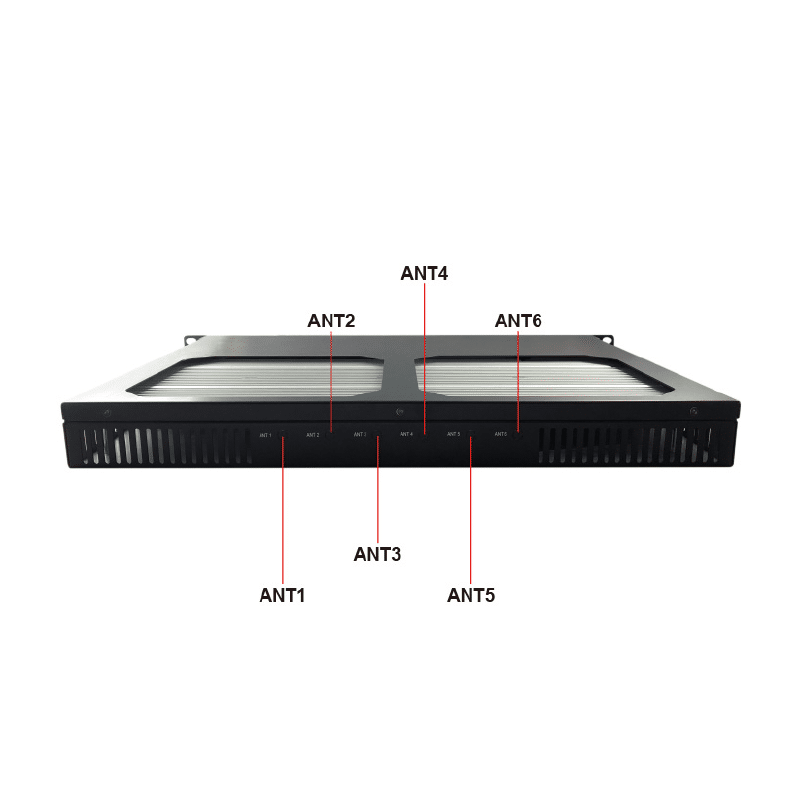

  • Wireless support LTE w/ SIM Card, GPS, Bluetooth(optional)>
  • 6 x GbE (optional PoE)
  • Isolated wide Input Range 77-137V DC

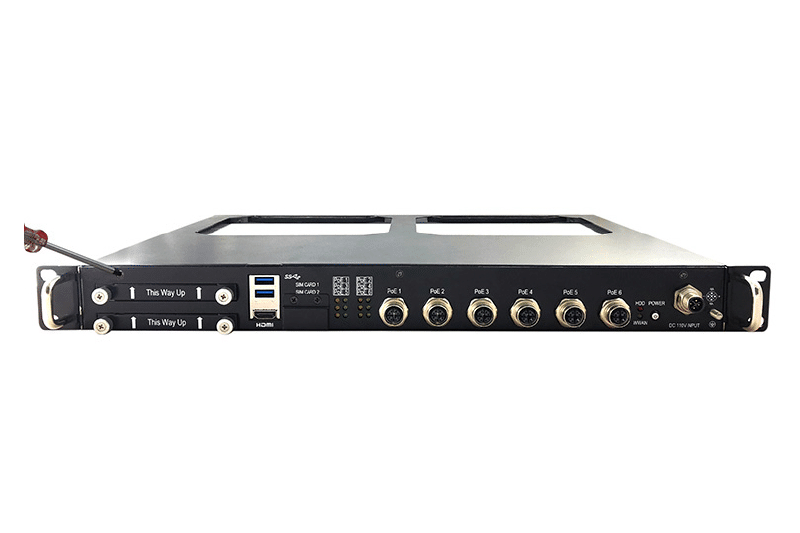

  • Dual Hot Swappable SATA Storage, RAID 0,1,5
  • EN50155 Tx temperature and class S2 interruption

Introduction

The RBOX-1000-M12X is powered by Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE(optional PoE) In-Vehicle Computer / EN50155 Railway Applications. RBOX-1000-M12X is highly flexible, supporting a wide range of peripherals and connections. It offers Wireless support LTE with SIM Card, GPS, BT(option), isolated wide Input Range 77-137V DC and EN50155 Tx temperature and class S2 interruption. RBOX-1000-M12X can be operated in extreme weather conditions (operating temperature: -40ºC ~ 70 ºC) suitable for railway station management and License Plate Identification (LPI). The easy-to-use, intuitive interface makes RBOX-1000-M12X highly suitable for use in public transportation and other applications that require high capacity and simplicity.

SYSTEM

Processor

Intel Gen6 Core i7-6600U 2.6GHz up to 3.4GHz
2 Cores/ 4 Threads
Benchmark Score up to 4867 (Based on PerformanceTest V9)
VT-x and VT-d Supported

Memory

2 x SO-DIMM DDR4 up to 32GB (16GB x2)

Watchdog

Watchdog Timer Support, Offer 1 – 255 Step

LAN Controller

6 x Intel I210-AT support PXE boot

GRAPHICS

Graphics Engine

Intel HD Graphics 520

DirectX Video Acceleration (DXVA) for Accelerating Video
Processing- Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0

HDMI®

1

Resolution

Up to 4096 x 2304@60 Hz

ETHERNET

LAN

6 x 10/100/1000 BASE-T
w/ M12 X-code connectors

PoE

Optional PoE total 90W max

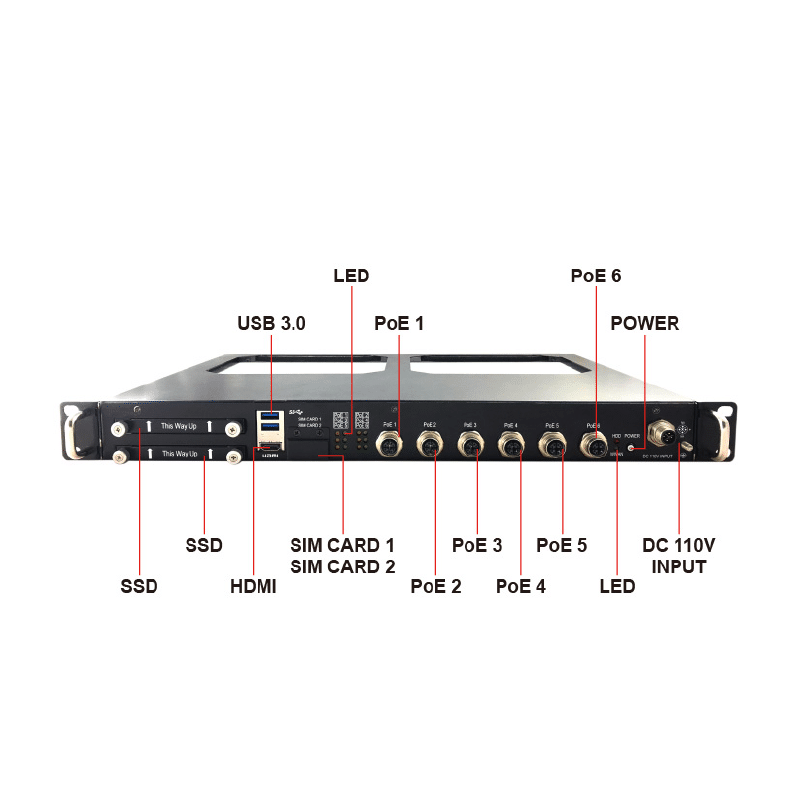

I/O

USB

2 x USB 3.0 w/Type-A Connectors

Expansion Bus

2 x Mini-card slots (USB Bus only)

STORAGE

SSD/HDD

2 x 2.5″ Drive Bay for SATA Type

mSATA

1

RAID

RAID 0, 1, 5

TELECOMMIUNICATION

SIM Socket

2, supported onboard with eject

POWER

Power Input

77-137V DC Power Input with Isolation
(Isolation for 24V/48V/72V)

Power Protection

Automatics Recovery Short Circuit Protection
Meet EN50155 Class S2

MECHANICAL

Dimension

482 x 300 x 44 mm

Weight

2500g

Construction

Aluminum Alloy

Mounting

1U 19″ Rack mount

ENVIRONMENT

Operating Temp.

-40 ~ 70°C EN50155 Tx, ambient w/0.6m/s airflow

Relative Humidity

10% RH – 90% RH (non-condensing)

Storage Temp.

-40 ~ 85°C

Vibration & Shock

EN50155, EN61373

IP Rating

IP20 (IP40 Kit for Optional)

ORDERING INFORMATION

Model No.

RBOX-1000-M12X-i7

Description

Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE with optional PoE In-Vehicle Computer/ EN50155 Railway Applications

State of Origin

Made in Taiwan
