Product

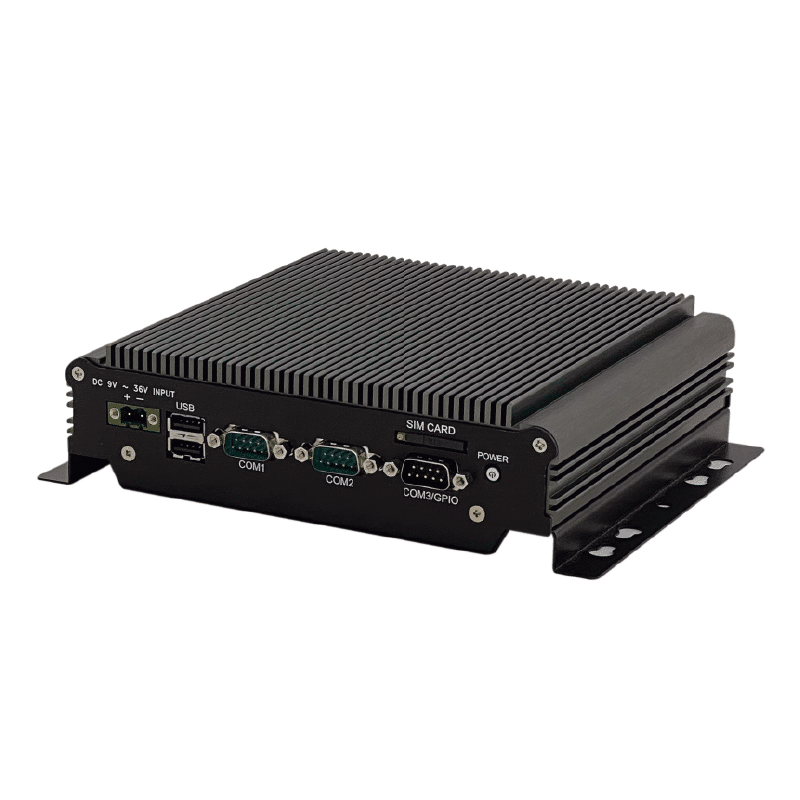

SBOX-2320

Fanless Box PC for Industrial Automation

Intel® Celeron® Processor N Series with 2xLAN/ HDMI®/ DVI/ VGA DC 9-36V Fanless Box PC

Product Status: Available

Features

  • Intel® Celeron® Processor N Series
  • Triple Display Output (DVI-I / HDMI® / VGA)
  • Dual Gigabit Ethernet and 2 x RS-232
  • Wide Range Operating Temp. : -30~60ºC
  • Ultra Slim (54mm), Compact Size and Fanless
  • 9-36VDC Power Input

Introtduction

The SBOX-2320 Fanless Box PC is suitable for various outdoor visual application needs such us video surveillance, automatic factory, automatic guided vehicle (AGV) and flight information display system (FIDS) in the airports. It is powered by Intel® Celeron® Processor N Series with 2xLAN/HDMI®/DVI/VGA DC 9-36V with Dual Gigabit Ethernet and 2xRS-232 and 1 x DDR3L-1600 SO-DIMM up to 8GB. SBOX-2320 features triple display output (DVI-I/HDMI®/VGA). To add, the environmental tolerance continually maintains a wide range of operating temperatures (-30ºC ~ 60 ºC). The ultra slim (54 mm) compact size makes this series ideally suited for digital signage or kiosks where space is limited.

SYSTEM

Processor

Intel® Pentium® Processor N3710 (N3710) up to 2.56 GHz

Intel® Celeron® Processor N Series (N3160) up to 2.24 GHz

Intel® Celeron® Processor N Series (N3060) up to 2.48 GHz

Memory

1 x DDR3L-1600 SO-DIMM up to 8GB

ATA

2 x Serial ATA ports with 6Gb/s HDD Transfer Rate

Watchdog

1 ~ 255 Level Reset

GRAPHICS

Graphics Engine

Intel HD Graphics

HDMI

1

DVI-I

1

VGA

1 (Through DVI-I )

 Use only with Single Link DVI Cables.

AUDIO

Line-Out

1

ETHERNET

LAN Chipset

2 x Intel i210-AT Gigabit Ethernet

LAN

2 x RJ45 Ports for GbE

I/O

Serial Port

2 x RS-232/422/485 (Optional Max. 4 x RS-232)

USB

2 x USB 2.0 and 2 x USB 3.0 port

GPIO

4 In and 4 Out GPIO Ports (5V Level)

STORAGE

Type

1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD

1 x SATA DOM

EXPANSION

Mini-card Slots

3 (one with SIM for LTE/3G Only)

POWER

Power Input

9-36VDC Input w/ Reverse Polarity OCP and OVP Protection

MECHANICAL

Dimensions

182 x 167.6 x 54 mm

Weight

1,200g (Barebone)

Construction

Aluminum Alloy

Mounting

Wall-mount, VESA-mount, Din Rail Mounting Kit

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-30 ~ 60°C, ambient w/ 0.6m/s airflow

Storage Temp

-40 ~ 85°C

CERTIFICATION

CERTIFICATION

CE, FCC Class A

OPERATIONAL SYSTEM

Windows

Windows

*The supported version depends on the Microsoft® announcement.

Linux

Ubuntu 16.04 64bit

Ordering Information

Model No.

SBOX-2320-000

Description

Intel® Celeron® Processor N Series (N3060)/ 2 x LAN/ HDMI®/ DVI/ VGA/ DC 9-36V Fanless Box PC

State of Origin

Made in Taiwan

Optional Accessories

DRAM

SO-DIMM max.DDR3L 1600, 2GB~8GB,0~70°C/-40~85°C

SATA SSD

2.5inch MLC/TLC 64GB~1TB 0~70°C/-40~85°C

SATA DOM

MLC 8GB~128GB, 0~70°C/-40~85°CC

Wifi

Wi-Fi mini PCIe half size card 802.3a/b/g/n/ac

Modem

LTE mini PCIe card

GPS

GPS mini PCIe card

Power adapter

Power Adapter 12V/5A 60W Jack
