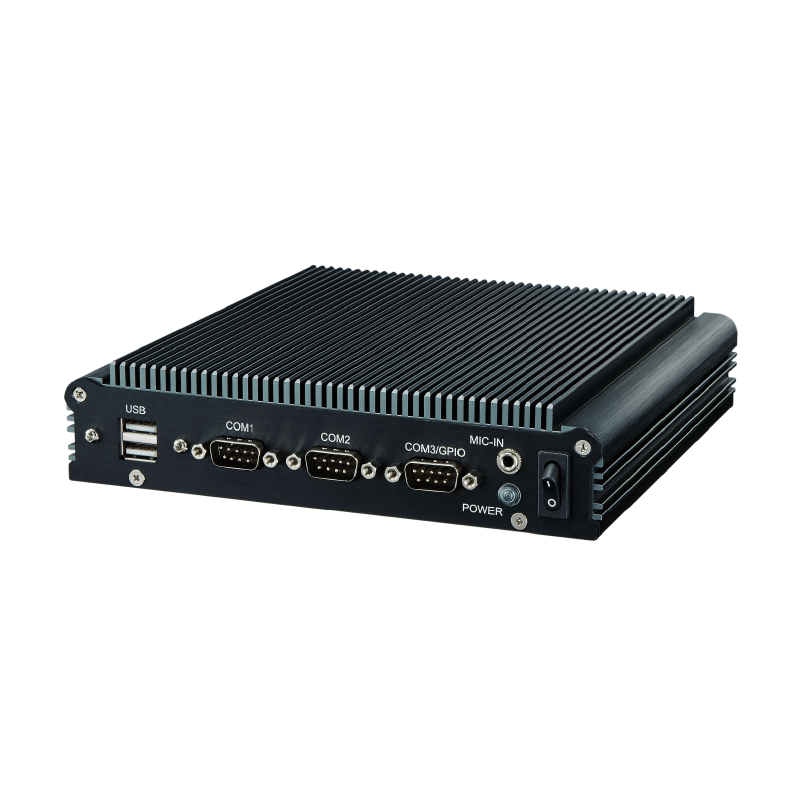

SBOX-2600 (EOL)

Rugged Embedded Computer

Intel Gen 4 Core i7-4650U with HD 5000 GPU with 2xLAN/ HDMI®/ DVI/ VGA DC 12V Fanless Box PC

Product Status: EOL
Inquiry Datasheet
CE FCC UL

Features

Intel Core i7-4650U / Core i5-4300U
Triple Display Output (DVI-I / HDMI® / VGA)
Dual Gigabit Ethernet and 2 x RS-232
Wide Range Operating Temp. : -30~60ºC
Ultra Slim(40mm), Compact Size and Fanless
DC 12V Power Input

SYSTEM

Processor

Intel Gen 4 Core i7-4650U 1.7GHz up to 3.3GHz Intel Gen 4 Core i5-4300U 1.9GHz up to 2.9GHz Intel Gen 4 Core i3-4010U 1.7GHz
Intel Gen 4 Dual Core Celeron 2980U 1.6GHz

Memory

1 x DDR3L-1600 SO-DIMM up to 8GB

Watchdog

1 ~ 255 Level Reset

ATA

2 x Serial ATA ports with 6Gb/s HDD Transfer Rate

GRAPHICS

Graphics Engine

Intel HD Graphics

HDMI®

1

DVI

1

VGA

1 (Through DVI-I*)AUDIO

AUDIO

Line-Out

1

Mic-in

1

ETHERNET

LAN Chipset

2 x Intel i210-AT Gigabit Ethernet

LAN

2 x RJ45 Ports for GbE

I/O

Serial Port

2 x RS-232 Ports (2 x RS-232/422/485), Optional Max.

4 x RS-232

USB

2 x USB 2.0 Ports and 2 x USB 3.0

GPIO

4 In and 4 Out GPIO Ports (5V Level)

STORAGE

Type

1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD

1 x SATA DOM

EXPANSION

Mini-card Slot

2

POWER

Power Input

DC 12V Input

MECHANICAL

Dimension

182 x 167.6 x 40 mm

Weight

1200g (Barebone)

Construction

Aluminum Alloy

Mounting

Wall-mount, VESA-mount, Din Rail Mounting Kit

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-30 ~ 60C, ambient w/ 0.6m/s airflow

Storage Temp.

-40 ~ 85oC

CERTIFICATION

CERTIFICATION

CE, FCC Class A, UL

OPERATIONAL SYSTEM

Windows

Win 7, Win 10

Linux

Ubuntu 16.04

ORDERING INFORMATION

Model No.

762600011000 – SBOX-2600-C1 System (C1 can be i3/i5/i7)Description

Description

Intel Gen4 Core i7-4650U CPU with HD 5000 GPU / 2xLAN / HDMI® / DVI / VGA / DC 12V Fanless Box PC

State of Origin

Made in Taiwan
