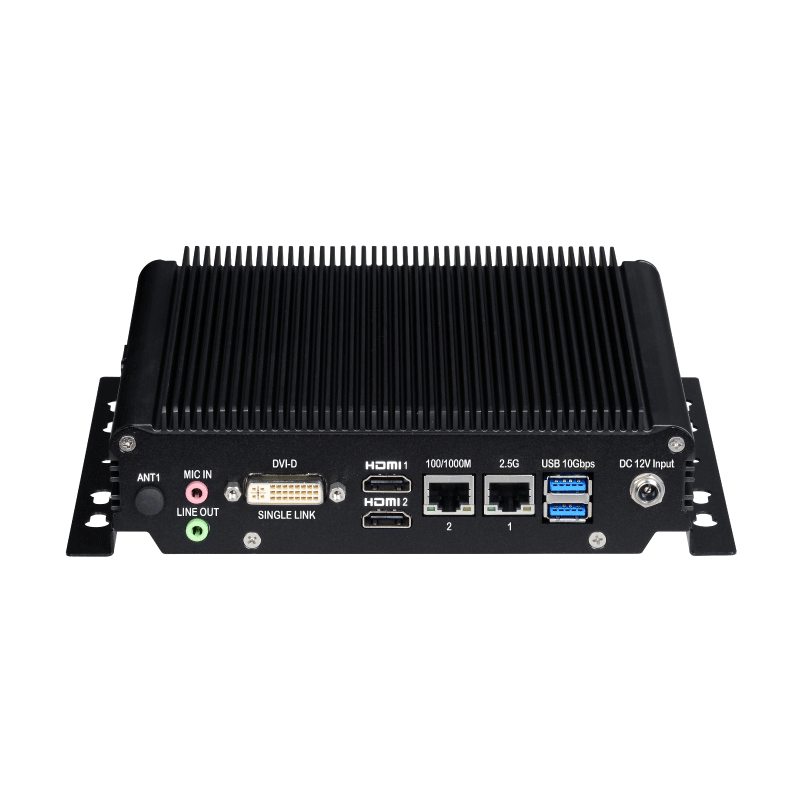

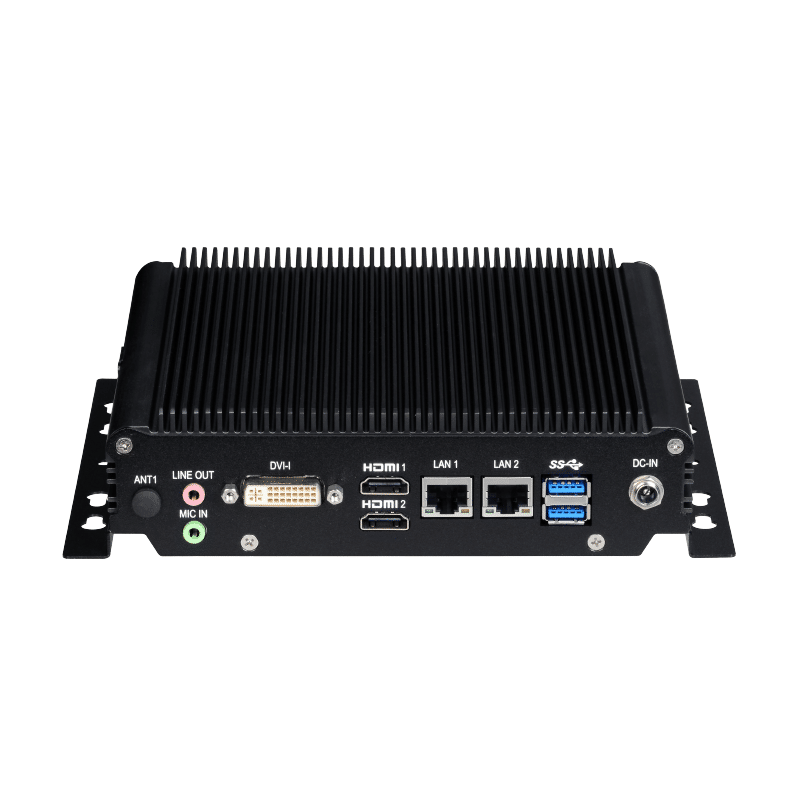

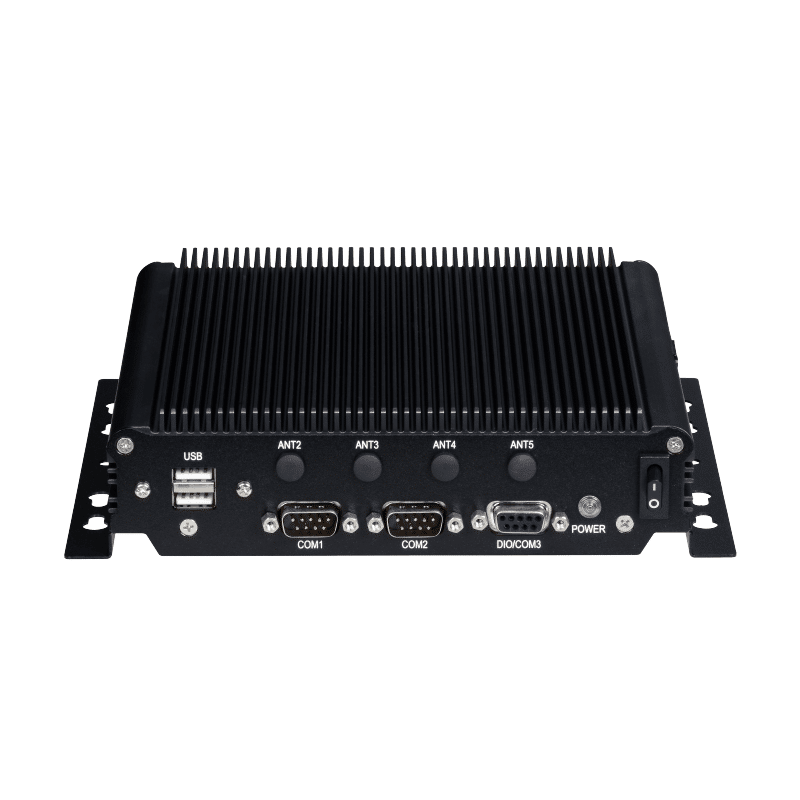

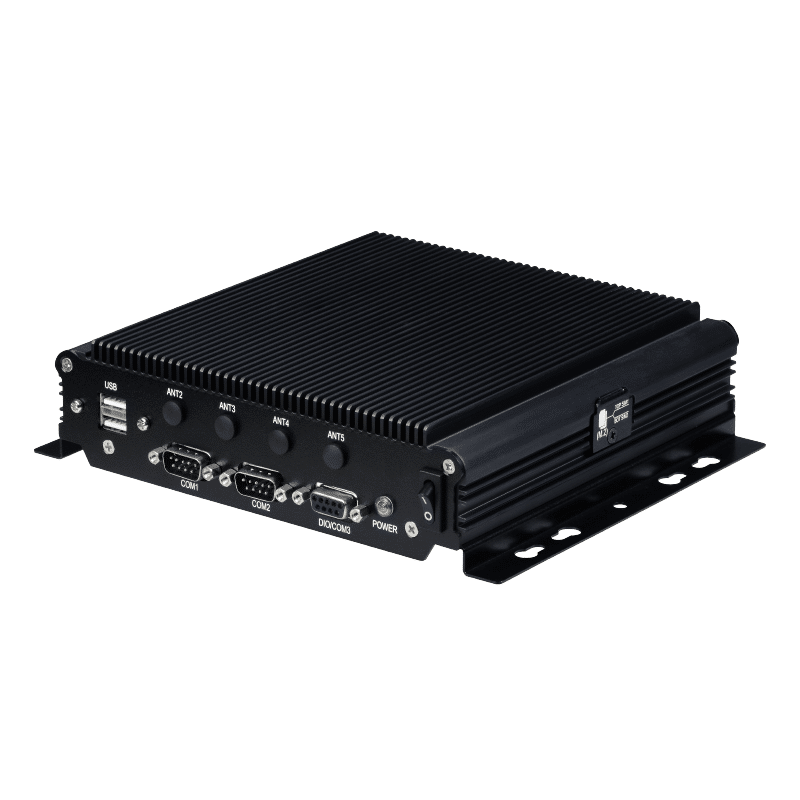

SBOX-2602

Rugged Industrial Computer for Embedded Computing

Intel® 11th Gen Core i7-1185G7E CPU with 2x LAN/ 2x HDMI® 2.0b/ 1x DVI-D/ 2x COM/ DC 12V
Fanless Box PC

Product Status: Available
Inquiry Datasheet

Features

  • Intel® 11th Gen Core i7-1185G7E
  • Triple Display Output (2 x HDMI® / VGA)
  • Wireless Support 5G/LTE, Wi-Fi / Bluetooth (by optional module)
  • Wide Range Operating Temperature -30°C ~ 60°C
  • 2 x RS-232/422/485
  • 4xDI / 4 x DO (5V/100mA)

Introduction

The SBOX-2602 is powered by Intel® 11th Gen Core i7-1185G7E with supporting triple display output (2 x HDMI® / VGA); it delivers high-performance computing and real-time capabilities for critical Industrial loT deployment. The SBOX-2602 is equipped with the newest Intel® Iris@ Xe Graphics and TSN technology, making it a perfect solution for Factory Automation, Service Robots, Cellular V2X, Smart Retail, and any AloT/Industry 4.0 applications. Also, this SBOX Fanless Box PC can be applied to industrial automation, digital signage, outdoor video surveillance, and automatic guided vehicle (AGV). The solutions can tackle all outdoor digital applications and extreme weather conditions.

SYSTEM

Processor

Intel® 11th Gen CoreTM i7-1185G7E up to 2.8 GHz*
Intel® 11th Gen CoreTM i5-1145G7E up to 2.6 GHz*
Intel® 11th Gen Core TM i3-1115G4E up to 3.0 GHz*
Intel® Celeron@ 6305E1.8GHz
*CPU TDP is configured at 15W as default setting.

Memory

1 x DDR4 SO-DIMM up to 32 GB

Watchdog

1~ 255 Level Reset

TPM

2.0

ATA

1 x Intel® i210-AT Gigabit Ethernet

GRAPHICS

Graphics Engine

Intel® Iris® Xe Graphics (for Core™ i7/i5 SKU)
Intel® UHD Graphics (for i3/Celeron™ 6305E SKU)

HDMI

2

VGA

1

AUDIO

Line-out

1

Mic-in

1

ETHERNET

LAN Chipset

1 x lntel® 2.5GbE supports vPro for i5 & i7 SKU
1 x lntel® GbE

LAN

2 x RJ45 Ports for GbE

I/O

Serial Port

2 x RS-232/422/485 (Optional 3rd serial port)

USB

2 x USB 2.0

2 x USB 3.0

GPIO

4 In and 4 Out GPIO Ports (5V/100mA)

SIM Socket

2 x SIM Card Socket Support Onboard

Antenna

5 x SMA Type External Antenna Pre-cut Hole

STORAGE

SSD/HDD

1 x SATA Connector for 2.5″ HDD/SSD

M.2

1 x M.2 2280 Key M Slot
( Support NVMe and SATA SSD w/auto-detection)

EXPANSION

M.2

1 x M.2 3042/52 Key B for 5G/LTE modem

1 x M.2 2230 Key A-E for Wi-Fi + Bluetooth

POWER

Power Input

DC 12V Input with DC-Jack

MECHANICAL

Dimension

210(L) x 171 (W) x 50(H) mm ( Wall Mount Bracket Included)

Weight

1600g

Construction

Aluminum Alloy

Mounting

Wall-mount (Optional VESA and Din Rail Mounting Kit)

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-30ºC ~ 60ºC, ambient w/ 0.6m/s airflow

Storage Temp.

-40ºC ~ 85ºC

CERTIFICATION

Certification

CE, FCC Class A

OPERATIONAL SYSTEM

Windows

Windows 10 IoT 2021 LTSC 64-bit

ORDERING INFORMATION

Model No.

SBOX-2602-i7, SBOX-2602-i5, SBOX-2602-i3, SBOX-2601-C1

Description

Intel® 11th Gen Core TM i7-1185G7E CPU w/ 2x LAN/ 2x HDMI® 2.0b/ 1x DVI-D/ 2x COM/ DC 12V/Fanless Box PC

State of Origin

Made in Taiwan

OPTIONAL ACCESSORIES

DRAM

SO-DIMM max.DDR4 3200, 8GB~32GB,  -40°C~85°C

SATA SSD

M.2 2280 Key B+M SATA SSD TLC 64GB~1TB,  -40°C~85°C

NVMe SSD

M.2 2280 Key M NVMe TLC 256GB~1TB,  -40°C~85°C

Wi-Fi / Bluetooth

M.2 2230 Key A+E Module

5G /LTE

M.2 3042/3052 Key B Module

Mounting kit

DIN Rail/VESA kit
