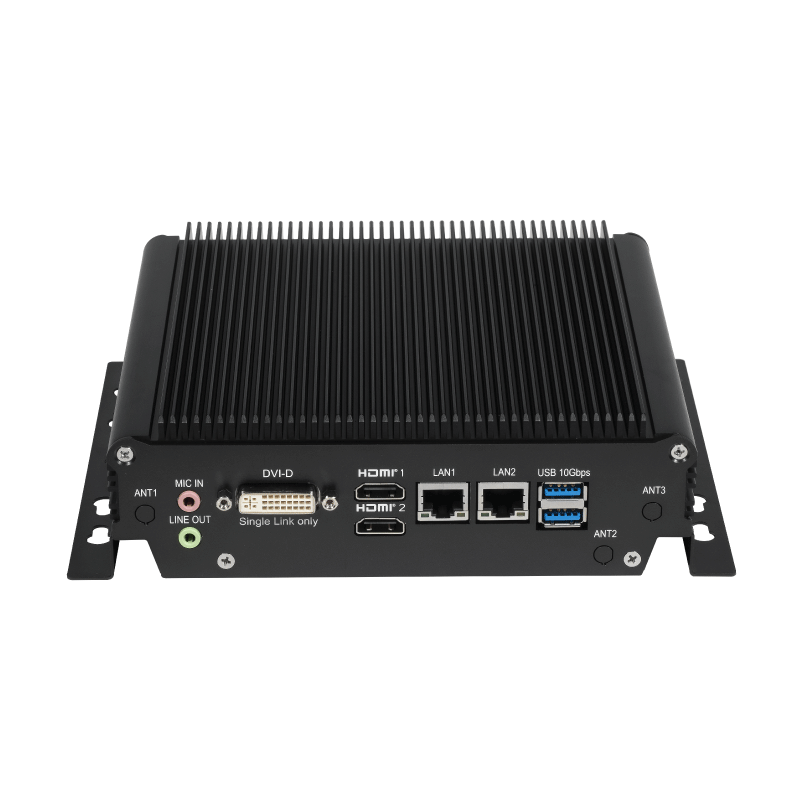

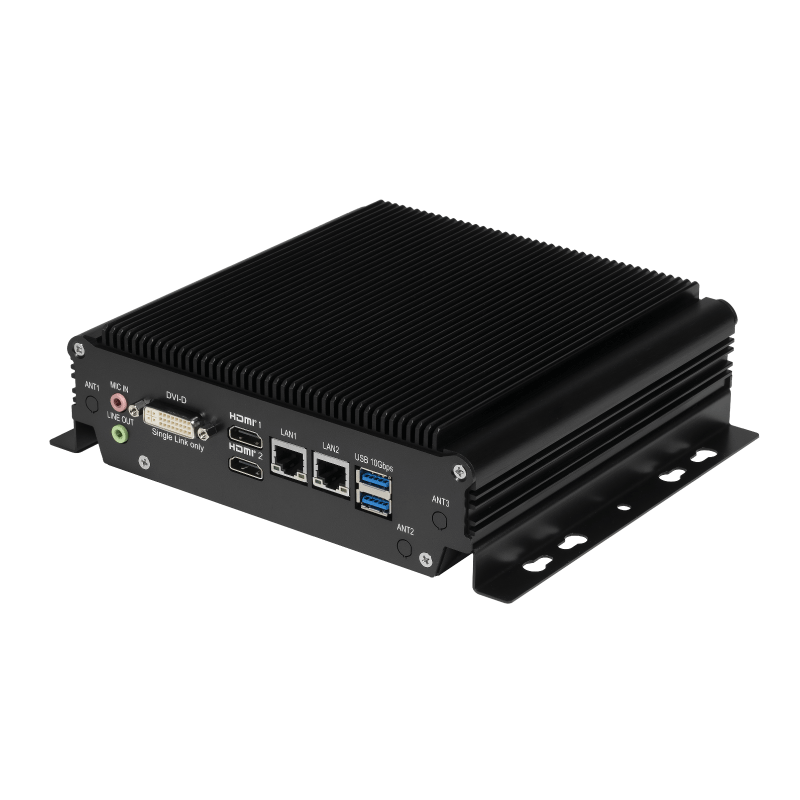

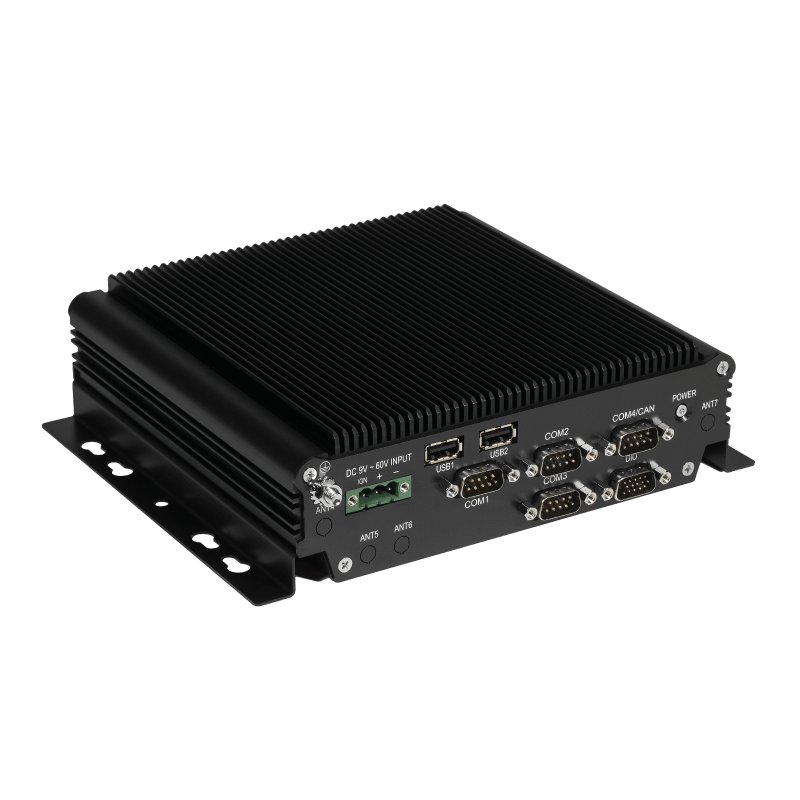

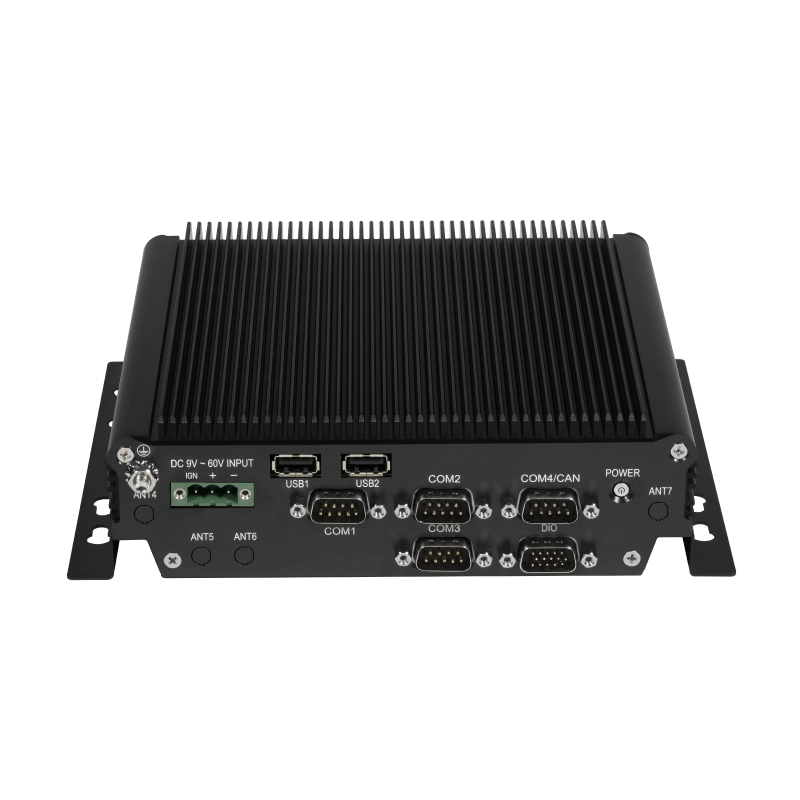

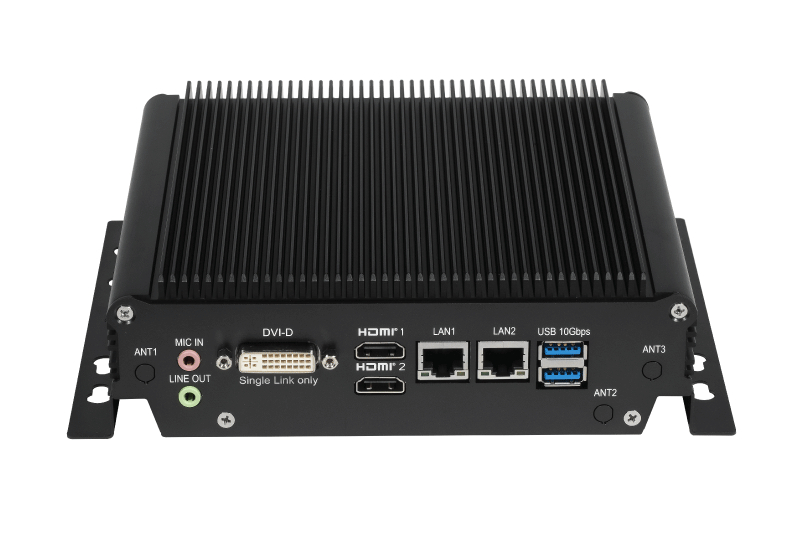

VBOX-3123-R2312

AMD Ryzen™ Embedded Computer

AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® / 2x GbE / 4x COM / DC 9~60V In-Vehicle Computer

Product Status: Available
Inquiry Datasheet
Features

• AMD Ryzen™ Embedded R2312 2C/4T Processor
• Dual HDMI® supports resolution specified in HDMI® 2.0b
• 1 x M.2 2280 M Key supports NVMe or SATA SSD
• 1 x M.2 3042/52 B Key supports USB 3.2 for WWAN w/ Dual SIM
• 1 x M.2 2230 E Key supports PCIe and USB 2.0 for Wi-Fi/BT
• 9 – 60VDC Wide Power Input

Performance Leap, Connectivity Upgrade, Bringing New Heights to Embedded Applications

AMD Ryzen™ Embedded R2000 Series Processors with AMD Radeon™ Graphics

The AMD Ryzen™ Embedded R2000 Series SoCs boost the Ryzen™ Embedded mid-range processor portfolio to new heights by bringing together the “Zen+” x86 core architecture with high-performance AMD Radeon™ graphics. Compared to the legacy R1000 Series, the R2000 Series provides up to 2X the CPU core count1, Radeon™ graphics supporting up to 4 independent 4K displays and up to 2X the I/O connectivity2 targeting Industrial and Robotics Systems, Machine Vision, IoT, Thin Clients and more.

With thermal design power (TDP) spanning from 12W to 54W, AMD Ryzen™ Embedded R2000 Series SoCs provide thermal agility for compact system designs to help streamline design efficiencies and BOM costs. They provide pin-to-pin package compatibility and a common software foundation with legacy AMD Ryzen™ Embedded R1000 and V1000 Series SoCs while delivering significant performance and connectivity boosts from previous R-Series families.

SYSTEM
Processor

• AMD Ryzen™ Embedded R2312 2C/4T Processor

Graphics

• CPU Built-in Graphics AMD Radeon™ Graphics

Memory

• 1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)

Network

• 2 x I210-AT

Security

• TPM 2.0

Watchdog

• System power on/off 1 ~ 255 min setting by BIOS

INTERFACE
Video
  • 1 x DVI-D (Only support Single Link DVI-D cables)
  • 2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b
Audio

• 1 x Line-out and 1 x Mic-in

Ethernet

• 2 x GbE RJ45 port

USB

• 2 x USB 3.2 Gen 2 (10Gbps)
• 2 x USB 2.0

DIO

• 4 x DI (9~60V) / 4 x DO (5V / 100mA)

• 2 x Analog Input (0~60V w/0.5V accuracy)

Serial Port

• 4 x RS-232/422/485

(COM4 is optional with CANBUS)

INTERNAL EXPANSION
M.2
  • 1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM
  • 1 x M.2 2230 Key E supports PCIe and USB2.0 Wi-Fi/BT
mPCIe

• 2 x mPCIe full size slot supports USB 2.0

STORAGE
Type
  • 1 x M.2 2280 Key M supports NVMe or SATA SSD
  • 1 x 2.5” SATA SSD
POWER
Power Input

• DC 9 ~ 60V input

Power Protection

• Over voltage and reverse polarity protection

Power Management

• Ignition Management for Variety Vehicle

Battery (UPS)

• Internal backup battery Kit for about 10 mins operating

* UPS backup time varies depending on actual overall system power consumption.

* Operating temperature will be 0°C~55°C with the battery kit.

Patent No. : M447854 – Build-in Battery

SOFTWARE
Operating System Support
  • Windows 10 IoT Enterprise 64bit LTSC
  • Windows 11 IoT Enterprise 64bit LTSC
  • Ubuntu 20.04 LTS 64bit
ENVIRONMENTAL
Operating Temp.

• -40 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)

Storage Temp.

• -40 ~ 80°C

Relative Humidity

• 10 ~ 90% @ 40ºC (non-condensing)

Certification / Standard

• CE, FCC Class A, UKCA, E-Mark

Vibration (with SSD)

• MIL-STD-810G, Method 514.6, Procedure I, Category 4 with SSD

Shock (with SSD)

• MIL-STD-810G, Method 516.6, Procedure I,

Trucks and semi-trailers=15G (11ms) with SSD

MECHANICAL
Construction

•  Aluminum Alloy

Mounting Method

•  Wall-mounting

Weight

•  1.8 Kg

Dimensions

•  210 (L) x 171 (W) x 56 (H) mm

ORDERING INFORMATION
Model Number

VBOX-3123-R2312

Description

AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® / 2x GbE / 4x COM / DC 9~60V In-Vehicle Computer

State of Origin

Made in Taiwan

OPTIONAL ACCESSORIES
Memory

DDR4-2400/2666/3200 SO-DIMM, 8GB~32GB, -40~85°C (ECC Option Available)

SSD

M.2 2280 M Key NVMe TLC -40~85°C 512GB~2TB

M.2 2280 M Key SATA TLC -40~85°C 128GB~2TB

2.5 inch SATA TLC -40~85°C 128GB~2TB

Wi-Fi

M.2 2230 Key A+E Wi-Fi 6 + Bluetooth 5.2 module

WWAN

M.2 3042/52 5G/LTE modem with Thermal Kit

GPS

mPCIe GPS module

CAN Bus

mPCIe CAN Bus module

Battery (UPS)

2350mAH 3S1P Battery kit (0°C ~55°C for Discharge)
