In-vehicle telematics computer VBOX
In-vehicle telematics computer VBOX-3620

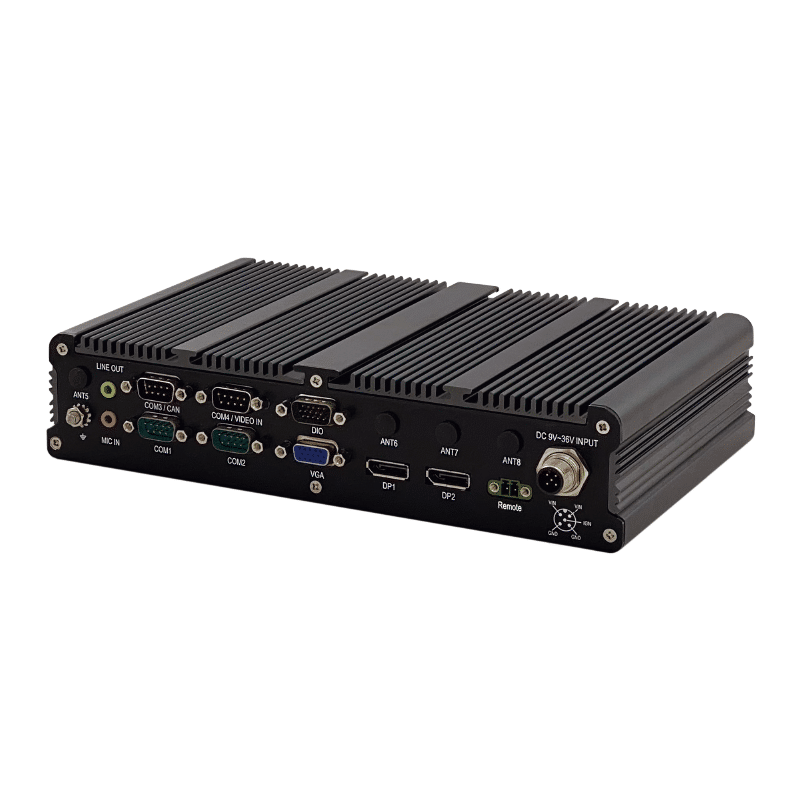

VBOX-3620-M12X

Embedded Industrial Pc for Fleet Management

Intel Gen6 Core i7-6600U CPU with Isolated Input 3 x GbE and 1 x iAMT In-Vehicle Computer

Product Status: Available
Inquiry Datasheet

Features

  • Intel Core i7-6600U / i5-6300U / i3-6100U
  • Wireless support LTE w/ SIM Card, WLAN, GPS Dead Reckoning, BT (Option)
  • 3 x GbE Including 1 with iAMT
  • Isolated wide Input Range 9 – 36VDC
  • Max. 8 x SIM card Sockets
  • Dual Hot Swappable SATA Storage, RAID 0, 1, 5
  • EN50155 Tx temperature and class S2 interruption
  • E-13 and ECE-R118 Certified

Introduction

The VBOX-3620-M12X is powered by Intel Gen6 Core i7-6600U CPU with Isolated input In-Vehicle Computer. VBOX-3620-M12X provides three GbE, including one with iAMT. It offers wireless support LTE with SIM Card, GPS, and BT (optional). It features smart vehicle power ignition for a variety of vehicles, and it can be adapted to all kinds of vehicle management systems like those with GPS, fleet monitoring systems, and vehicle repairing systems. It can manage a vehicle’s internal capabilities to accurately assess and track a vehicle’s internal hardware and software states, forward-thinking usage, and all fleet movements.

SYSTEM

Processor

Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz

Chipset

N/A

Memory

2 x SO-DIMM DDR4 up to 32GB

Watchdog

Watchdog Timer Support, Offer 1 – 255 Step

TPM

N/A

GRAPHICS

Graphics Engine

Intel HD Graphics 520
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing – Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0

DisplayPort

2

DVI

N/A

VGA

1 (Support Triple Independent Display)

Resolution

Up to 4096 X 2304@60Hz

AUDIO

Audio Codec

Realtek ALC662 HD Codec Onboard

Line-out

1

Mic-in

1

Line-in

Optional

ETHERNET

LAN Chipset

2 x Intel I210AT and 1 x Intel i219LM

LAN

3 x 10/100/1000 Mb/s w/ M12 x-code (1 port with iAMT)

PoE

N/A

I/O

Serial Port

4 x RS-232/422/485 with Isolation (Auto Direction Control)

USB

2 x USB 3.0 Ports, 2 x USB 2.0 Ports

DIO

8 x GPI and 4 x GPO w/ isolation

AIO

N/A

SIM Socket

2 x SIM Card Sockets supported onboard with eject
6 x SIM Card Sockets (Optional order No. SIM-6A)

Antenna

N/A

STORAGE

SSD/HDD

2 x 2.5″ Drive Bay for SATA Type

mPCIe

N/A

mSATA

1 x SATA DOM or mSATA (Auto detected)

M.2

N/A

RAID

0, 1, 5

EXPASION

Mini PCI Express

3 x Mini-Card Slots

M.2

1 x M.2 Slot

POWER

Power Input

9V -36V DC Power Input

Power Protection

Automatics Recovery Short Circuit Protection

Smart Ignition

Vehicle Power Ignition for Variety Vehicle

Power-off Delay Control

Power off Delay Time Setting by Software and BIOS

Backup Battery Solution

Patented Battery Kit

MECHANICAL

Dimension

250 x 150 x 55 mm

Weight

1900g (bare-bone)

Construction

Aluminum Alloy

Mounting

N/A

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40 ~ 70°C (Default CPU 17Watt)

Storage Temp.

-40 ~ 80°C

Vibration & Shock

N/A

IP Rating

N/A

CERTIFICATION

Certification

CE, FCC Class A, EN50155, EN50121, E13, EN45545-2 (R25), ECR-R118, ECE R118

Safety

N/A

Patent

M447854, M448011

ORDERING INFORMATION

Model No.

VBOX-3620-M12X-000

Description

Intel Gen6 Core i7-6600U CPU with Isolated Input 3 x GbE and 1 x iAMT In-Vehicle Computer

State of Origin

Made in Taiwan
