Product

VDM-286RS-AC

Information Display for Public Transportation Terminals

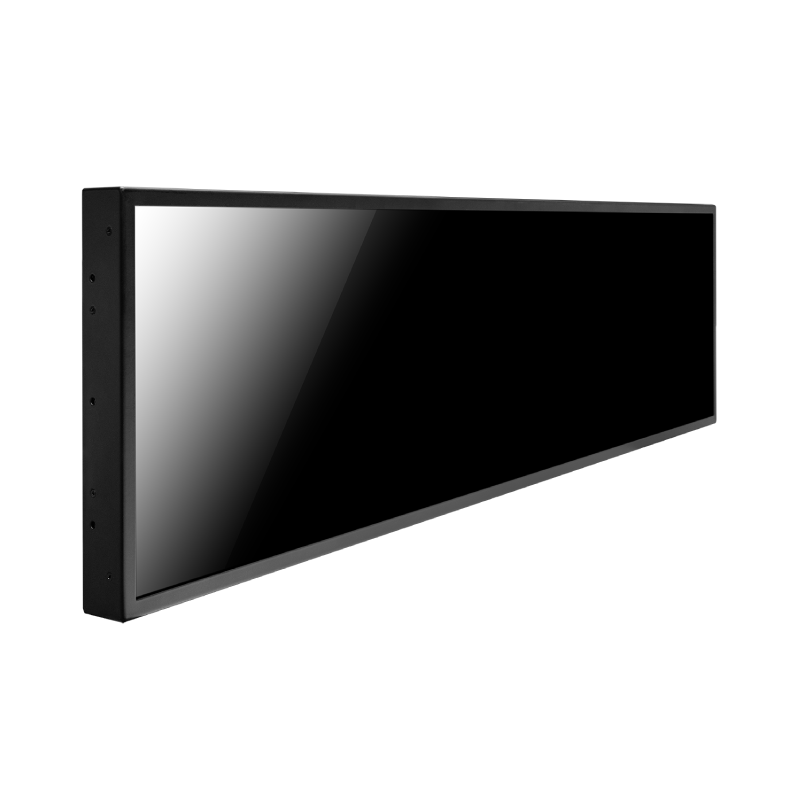

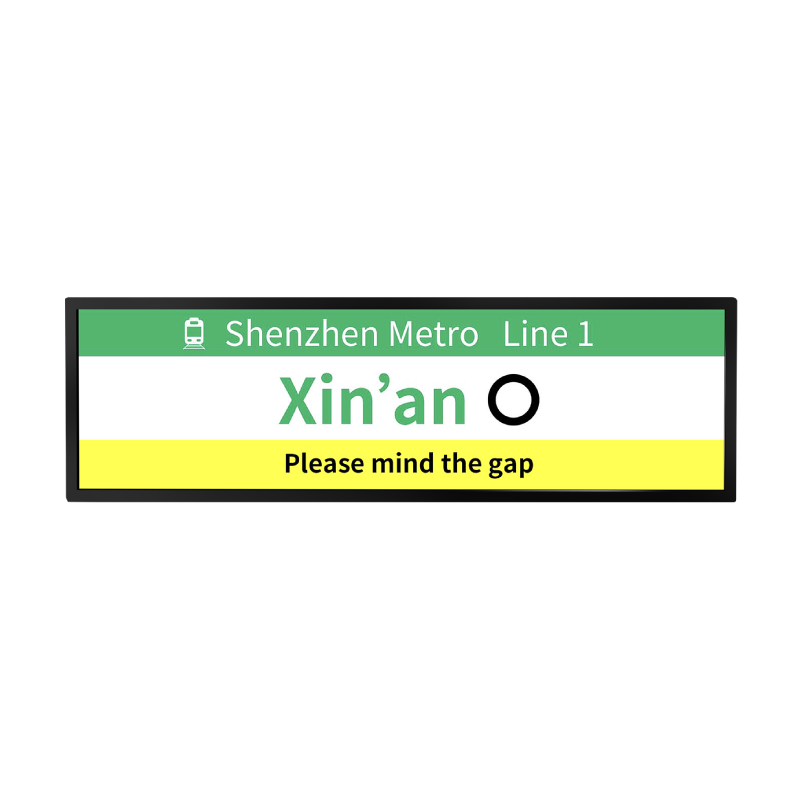

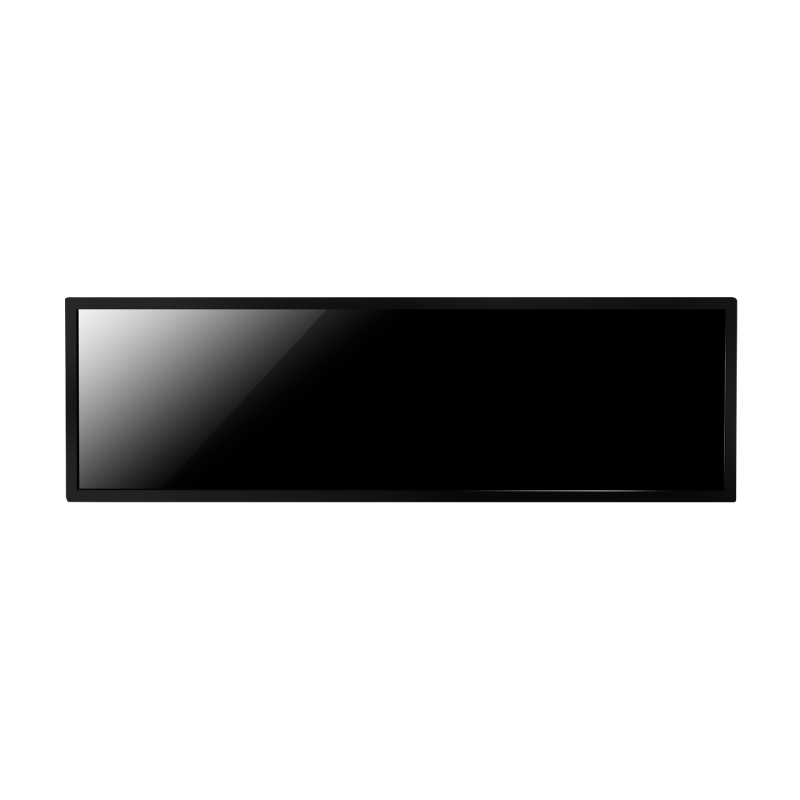

28.6" Resized Passenger Information Display

Status: Alive
Inquiry Datasheet

Features

  • 1920 x 540 Resolution
  • Anti-Glare Surface Treatment (Haze 28%)
  • Side / Bottom I/O Design for Slim Wall Mounted
  • Landscape / Portrait Mounting
  • Reliable 24/7 Operation
  • 700 nits High Brightness
  • Reliable Passenger Information Display Solution for Public Transportation Terminals
Display
Size

28.6 inches

Ratio

32:9

Maximum Resolution

1920 x 540

Active Area

698.4 (H) x 196.4 (V) mm

Brightness (Typical)

700 nits

Contrast Ratio (Typical)

4000 : 1

Viewing Angle

89/89/89/89 Degree

I/O
Video

2 x HDMI® Input
1 x DP
1 x HDMI® Output

Audio

1 x 3.5mm Audio Output

Others

1 x RS-232 TX (RJ45)
1 x RS-232 RX (RJ45) for Display Control
1 x USB Type A for USB Flash Disk

Power
Power Input

AC 100 – 240V, 50-60Hz

Environmental
Operating Temp.

-20 ~ 60°C

Storage Temp.

-20 ~ 60°C

Relative Humidity

10% RH – 90% RH (non-condensing)

Certification and Standards
Certification

CE, FCC

Mechanical
Construction

Metal Alloy

Mounting

180 x 140 mm, M6

Weight

7.9 Kg

Dimensions

726 (L) x 224 (W) x 82 (H) mm

Ordering Information
Model Number

VDM-286RS-AC

Description

28.6″ Resized Passenger Information Display

State of Origin

Made in Taiwan
