Product

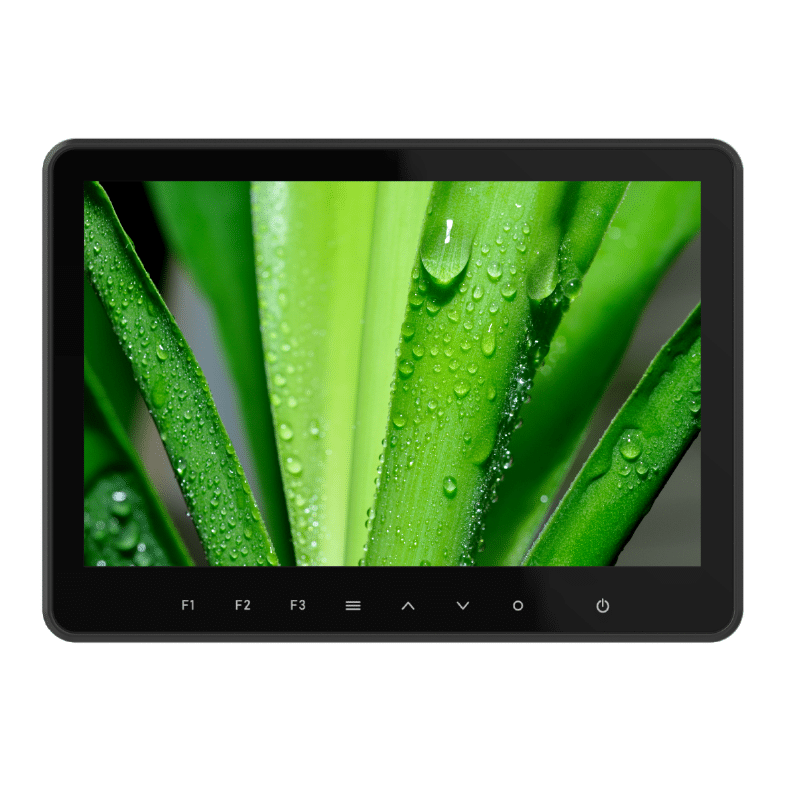

VDM-101HD

10.1" In-Vehicle HMI Monitor for Fleet Management Terminal

10.1" In-Vehicle Monitor (16:10) 1280 x 800 High Resolution / 500 nits / 1000:1 Contract Ratio / Projected Capacitive Touch / DC 9~48V / Front Panel IP65

Product Status: Available
IP66 Design (Waterproof and Dustproof)
Features

• Effortless One-Cable Connection
• 1280(H)×800(V) High Resolution
• High Brightness 500 Nits
• Secondary Video Input (HDMI)
• Projected Capacitive Multi-touch
• 9 ~ 48V DC Power Input
• Operating Temp.: -20°C ~ 60°C
• Vehicle Regulation E-Mark

Introduction

VDM-101HD is a touch monitor with a wide power input voltage range and operating temperature dedicated to in-vehicle computing. An ideal operating terminal for fleet management and intelligent cockpit applications on commercial vehicles. The panel resolution of 1280 x 800 and typical brightness of 500 nits excel among other 10.1” monitors on the market. SINTRONES’ proprietary cable design, which delivers video, audio, touch signal, and power in one cable connection, provides effortless deployment and installation.

LCD
Screen Size / Ratio

10.1 inches / 16 : 10

Resolution

1280 (H) × 800 (V) RGB

Active Area (mm)

218.16 (H) × 136.80 (V) mm

View Angle (H/V)

80 / 80 / 80 / 80 Degree

Brightness (nits)

500 nits (typical)

Contrast Ratio

1000 : 1 (typical)

Backlight Type

LED

Touch
Type

Projected Capacitive with Multi-touch

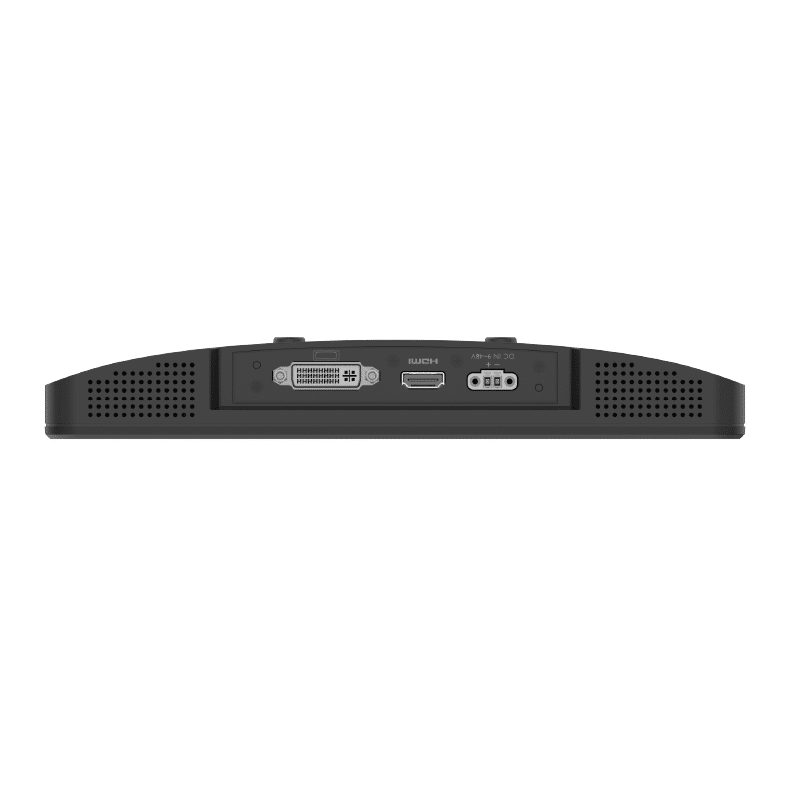

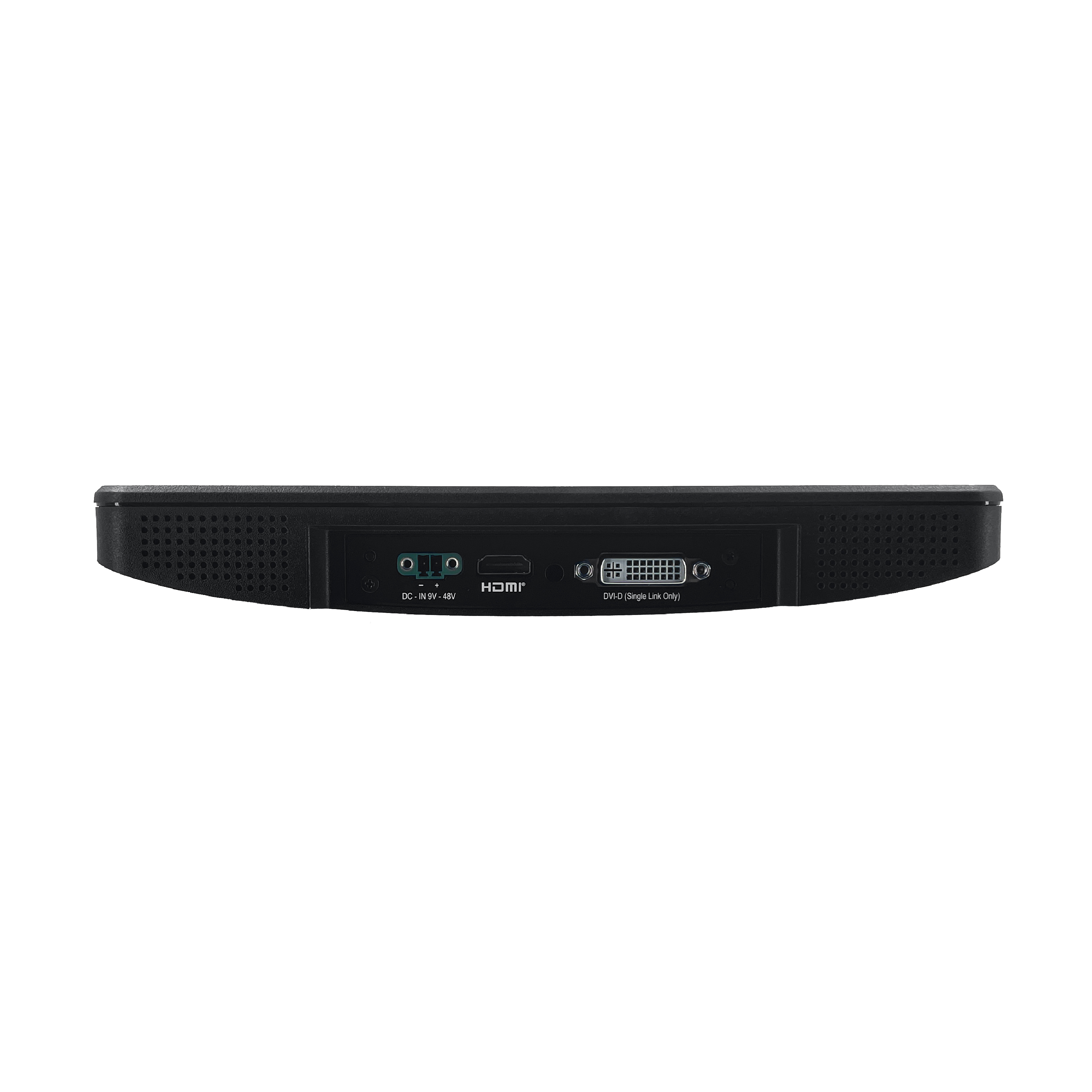

I/O
DVI

1 x DVI-D 29 pins Connector for DVI-D Single Link Video

Line in

1

MIC out

1

Power Input

DC 9~48V

Secondary Video Input

1 x HDMI

Function Key

6 x Touch Hotkey

Audio
Microphone

2 x Built-in Digital MIC

Speaker

Stereo Speaker with built-in Amplifier

Mechanical
Dimension

247.84 (L) x 178.59 (W) x 36.36 (H) mm

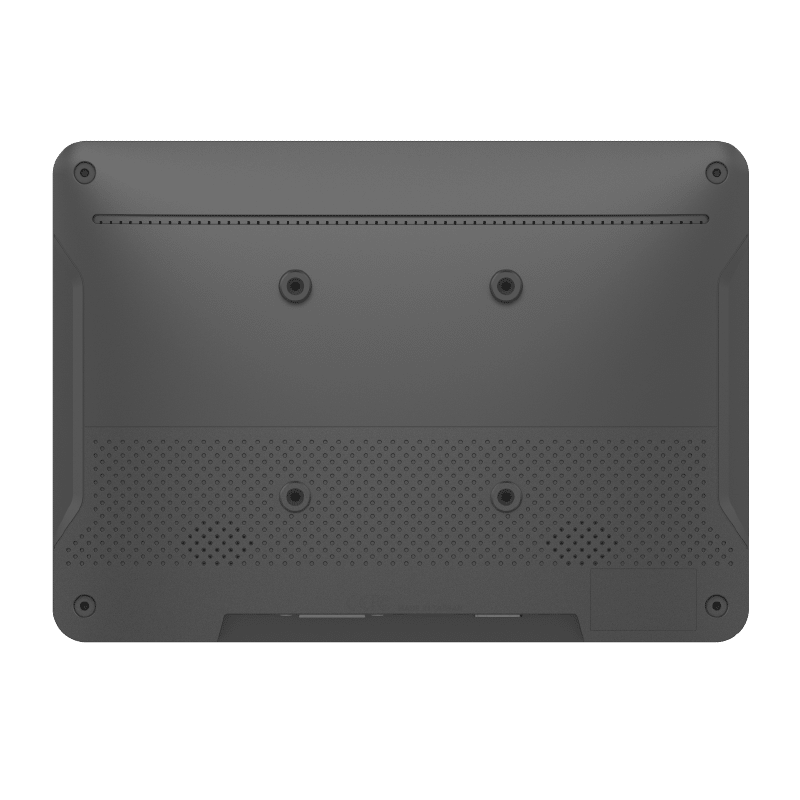

Mounting

VESA MIS-D 75 mm

Weight

900g

IP Rating

(Front) IP65

(others) IP4X

Power Requirement
Power Input

9 ~ 48V DC Power Input
(Power input via DVI or Terminal Block Connector)

Environmental
Operating Temp.

-20°C ~ 60°C with 0.6 m/s airflow

Storage Temp.

-40°C ~ 80°C

Relative Humidity

10% RH – 90% RH (non-condensing)

Vibration

IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

Shock

Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms)

Certification

CE, FCC Class A, E-Mark

Ordering Infomation
Model Number

VDM-101HD

Description

16:10 10.1″ 500nits In-Vehicle Monitor w/ P-CAP Multi-touch

State of Origin

Made in Taiwan

Optional Accessories
DVI - DVI Cable

DVI to DVI SINTRONES Custom Pin Define for VBOX-3630, VBOX-3122, VBOX-3131, SBOX-2622, SBOX-2602

DVI - 4 Ports Combo Cable

DVI to 4 Ports for VBOX-3611, VBOX-3130, VBOX-3121

DVI - 6 Ports Combo Cable

DVI to 6 Ports for ABOX-5210(G), ABOX-5200(G), ABOX-5000
